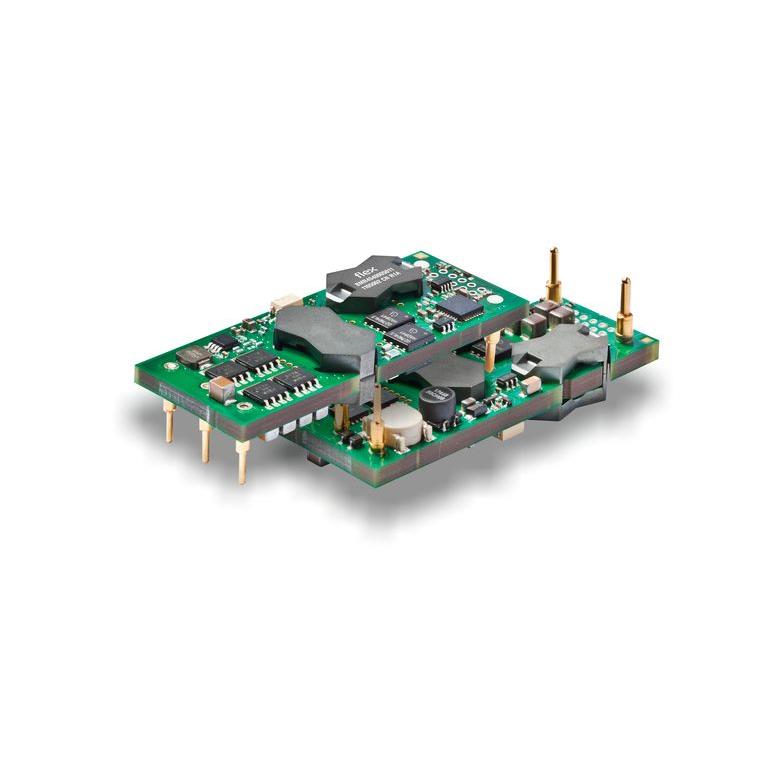

BMR4540104/005

BMR4540104/005 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Flex Power Modules. Its product description is DC DC CONVERTER 12V 240W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for BMR4540104/005

• Description：DC DC CONVERTER 12V 240W
• Series：BMR454 (240W)
• Mfr：Flex Power Modules
• Package：Tray
• Type：Isolated Module, Digital
• Number of Outputs：1
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：75V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：20A
• Power (Watts)：240 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：Adjustable Output, Baseplate, PMBus™, Remote On/Off, Remote Sense
• Operating Temperature：-40°C ~ 125°C (With Derating)
• Efficiency：95.10%
• Mounting Type：Through Hole
• Package / Case：Eighth Brick
• Size / Dimension：2.30" L x 0.89" W x 0.52" H (58.4mm x 22.7mm x 13.2mm)
• Supplier Device Package：Eighth Brick
• Control Features：Enable, Active Low
• Approval Agency：CB, CSA, IEC, TUV, UL
• Standard Number：62368-1
• Grade：-
• Qualification：-
