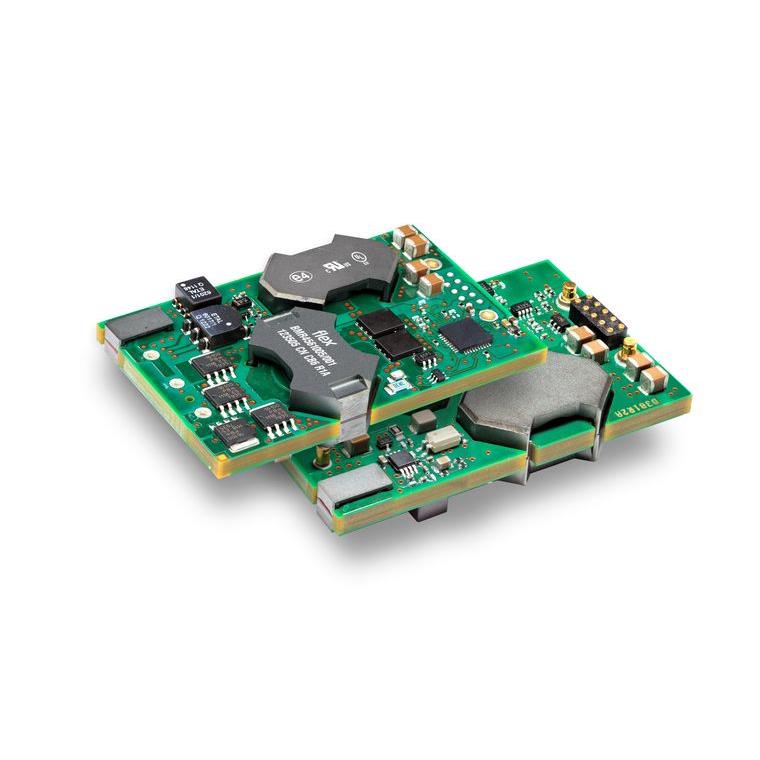

BMR4560012/016

BMR4560012/016 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Flex Power Modules. Its product description is DC DC CONVERTER 12V 468W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for BMR4560012/016

• Description：DC DC CONVERTER 12V 468W
• Series：BMR456 (468W)
• Mfr：Flex Power Modules
• Package：Tray
• Type：Isolated Module, Digital
• Number of Outputs：1
• Voltage - Input (Min)：40V
• Voltage - Input (Max)：60V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：39A
• Power (Watts)：468 W
• Voltage - Isolation：2.25 kV
• Applications：ITE (Commercial)
• Features：Adjustable Output, PMBus™, Remote On/Off, Remote Sense
• Operating Temperature：-40°C ~ 125°C (With Derating)
• Efficiency：96.80%
• Mounting Type：Through Hole
• Package / Case：Quarter Brick
• Size / Dimension：2.28" L x 1.45" W x 0.44" H (57.9mm x 36.8mm x 11.3mm)
• Supplier Device Package：Quarter Brick
• Control Features：Enable, Active Low
• Approval Agency：CB, CSA, IEC, TUV, UL
• Standard Number：62368-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for BMR4560012/016
