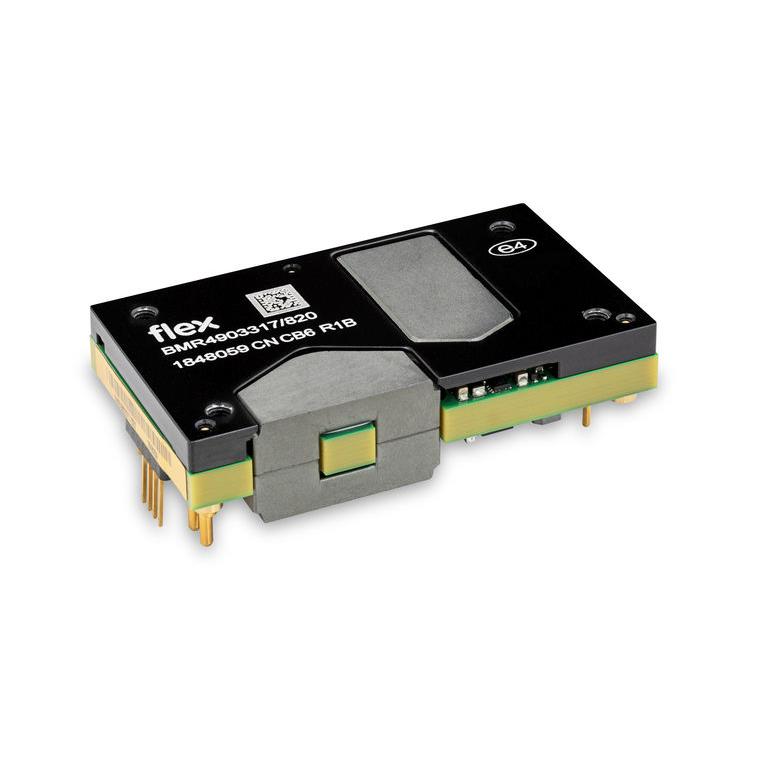

BMR4903317/820H

BMR4903317/820H is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Flex Power Modules. Its product description is DC DC CONVERTER 12V 1670W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for BMR4903317/820H

• Description：DC DC CONVERTER 12V 1670W
• Series：BMR490 (1300W)
• Mfr：Flex Power Modules
• Package：Tray
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：40V
• Voltage - Input (Max)：60V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：139A
• Power (Watts)：1670 W
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：Adjustable Output, Baseplate, PMBus™, Remote On/Off
• Operating Temperature：-40°C ~ 125°C (With Derating)
• Efficiency：97.60%
• Mounting Type：Through Hole
• Package / Case：Quarter Brick
• Size / Dimension：2.30" L x 1.45" W x 0.57" H (58.4mm x 36.8mm x 14.5mm)
• Supplier Device Package：Quarter Brick
• Control Features：Enable, Active Floating
• Approval Agency：cURus, IEC, UL
• Standard Number：62368-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for BMR4903317/820H
