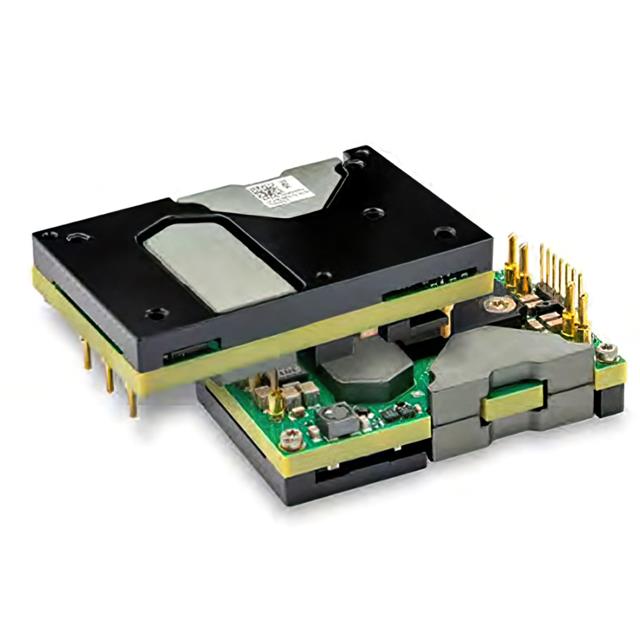

BMR4910203/851

BMR4910203/851 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Flex Power Modules. Its product description is 40-60VIN: 12VOUT: 1300W; ISOLATE. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for BMR4910203/851

• Description：40-60VIN: 12VOUT: 1300W; ISOLATE
• Series：BMR491 (1300W)
• Mfr：Flex Power Modules
• Package：Tray
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：40V
• Voltage - Input (Max)：60V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：108.3A
• Power (Watts)：1.3 kW
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：Adjustable Output, Baseplate, Heat Sink, I2C Interface, Load Sharing, PMBus™, Remote On/Off, Standby Output
• Operating Temperature：-40°C ~ 125°C
• Efficiency：97.20%
• Mounting Type：Through Hole
• Package / Case：Quarter Brick
• Size / Dimension：2.30" L x 1.45" W x 0.55" H (58.4mm x 36.8mm x 14.0mm)
• Supplier Device Package：Quarter Brick
• Control Features：Enable, Active Low
• Approval Agency：-
• Standard Number：60950-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for BMR4910203/851
