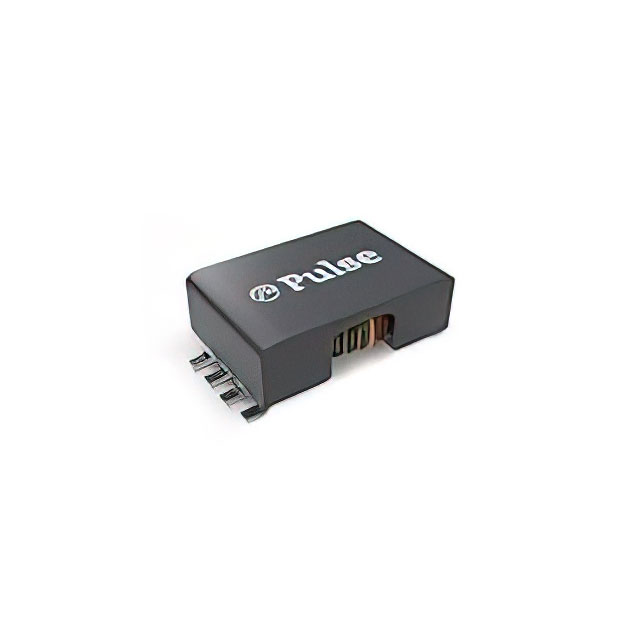

BMU6201NL

$2.99

Description：TRANSFORMER 5UH 1:1:1 500V SMT
Series：-
Mfr：Pulse Electronics
Package：Tube

SKU:5134caf178ac Category: Pulse Transformers Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：TRANSFORMER 5UH 1:1:1 500V SMT
Series：-
Mfr：Pulse Electronics
Package：Tube
Transformer Type：-
Inductance：5µH
ET (Volt-Time)：-
Turns Ratio - Primary:Secondary：1:01:01
Mounting Type：Surface Mount
Size / Dimension：0.295" L x 0.198" W (7.49mm x 5.03mm)
Height - Seated (Max)：0.155" (3.94mm)
Operating Temperature：-40°C ~ 125°C
Grade：-
Qualification：-

Download product information

BMU6201NL

Overview

The BMU6201NL is a surface-mount signal transformer manufactured by Pulse Electronics, designed for power line communication applications. It features an inductance of 5 µH and supports a voltage rating of 500 V with a 1:1:1 turns ratio. The component meets AEC-Q200 qualification standards, ensuring reliability for automotive environments. It operates within a frequency range of 100 kHz to 100 MHz and utilizes SMD/SMT termination types. The device is unshielded and housed in a compact package suitable for automated assembly processes.

Feature Summary

AEC-Q200 qualified for automotive reliability
Designed for power line communication signals
Surface mount construction for automated assembly

Applications

Automotive power line communication systems
Signal coupling in automotive networks
Data transmission over power lines

Procurement Notes

Verify the specific ordering suffix against official documentation to ensure correct packaging and variant selection. Confirm that the AEC-Q200 qualification aligns with target automotive application requirements. Check current supply chain status as availability may fluctuate. Ensure compatibility with existing PCB layout constraints regarding surface mount footprint dimensions.

Selection Notes

Select this component when automotive-grade signal isolation is required for power line communication interfaces. Consider the 5 µH inductance value for matching circuit impedance requirements. Evaluate the 500 V rating against system voltage levels. Verify that the unshielded design does not conflict with electromagnetic interference constraints in the final assembly environment.

Part Context

This part belongs to the BMU series of audio and signal transformers from Pulse Electronics. It serves as a specialized component for network isolation in automotive contexts. The series includes variants optimized for different communication protocols and mechanical form factors, providing engineers with options for integrated signal processing solutions.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult manufacturer resources for cross-reference data before implementation.
