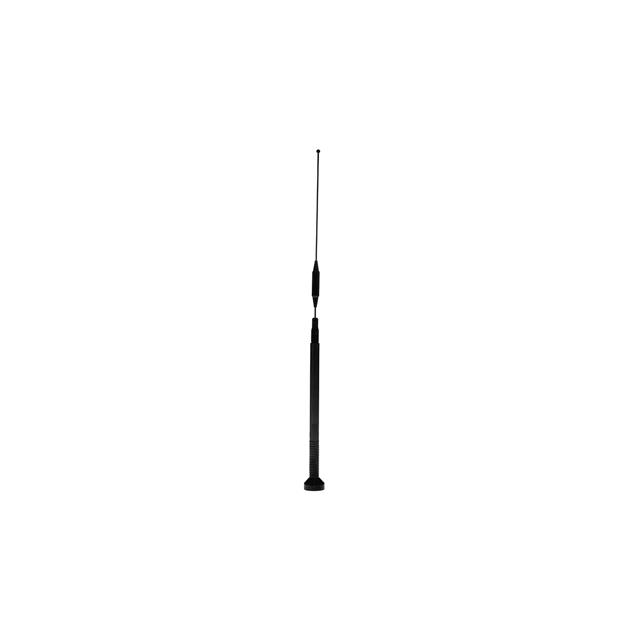

BMUF8043 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Amphenol PCTEL. Its product description is RF ANT 860.5MHZ WHIP STR NMO MNT. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for BMUF8043
- Description：RF ANT 860.5MHZ WHIP STR NMO MNT
- Series：MUF
- Mfr：Amphenol PCTEL
- Package：Bag
- RF Family/Standard：-
- Frequency Group：UHF (300MHz ~ 1GHz)
- Frequency (Center/Band)：860.5MHz
- Frequency Range：825MHz ~ 896MHz
- Antenna Type：Whip, Straight
- Number of Bands：1
- VSWR：1.5
- Return Loss：-
- Gain：3dBi
- Features：-
- Termination：-
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：NMO Mount
- Height (Max)：23.000" (584.20mm)
- Applications：TETRA/P25
- Power - Max：125 W
Antennas RF datasheet and documents for BMUF8043
Antennas RF Overview
The BMUF8043 is a vertical linear polarization whip antenna designed for mobile applications. It operates within the 806–896 MHz frequency range, covering cellular, LTE, and TETRA/P25 protocols. The unit features a 3dB gain and supports a maximum power rating of 125 watts. Constructed with stainless steel, it utilizes an NMO mount interface for secure installation. The physical height is approximately 23 inches (584.20mm), suitable for elevated feed configurations.
Antennas RF Feature Summary
- Vertical linear polarization for consistent signal coverage
- Stainless steel whip construction for durability
- NMO mounting interface for standard vehicle integration
Antennas RF Applications
- TETRA public safety communications
- P25 digital radio systems
- Cellular and LTE data services
- Mobile vehicle installations
Antennas RF Procurement Notes
Verify the specific ordering suffix to ensure compatibility with required connector types and cable lengths. Confirm that the NMO mount base matches the vehicle roof configuration. Check lead times as manufacturing schedules may vary. Ensure the operating environment temperature range aligns with the specified +85°C maximum limit for reliable performance.
Antennas RF Selection Notes
Select this model when a 3dB gain antenna is required for the 806–896 MHz band. It is appropriate for vehicles needing support for both analog P25 and digital TETRA standards. Consider the 23-inch length for clearance constraints. Verify that the 125-watt power handling meets the transmitter output requirements for the intended application.
Antennas RF Part Context
This component belongs to the Amphenol PCTEL mobile antenna portfolio. It is engineered for rugged outdoor use in professional communication environments. The design emphasizes reliability for critical voice and data transmission. It serves as a dedicated solution for first responders and commercial fleet operators requiring robust RF connectivity.
Antennas RF Replacement Considerations
No publicly confirmed substitute part numbers are available in the provided documentation. Direct replacement requires matching the NMO mount style, 806–896 MHz frequency range, and 3dB gain specifications. Consult manufacturer catalogs for cross-reference options if the exact model is discontinued.
