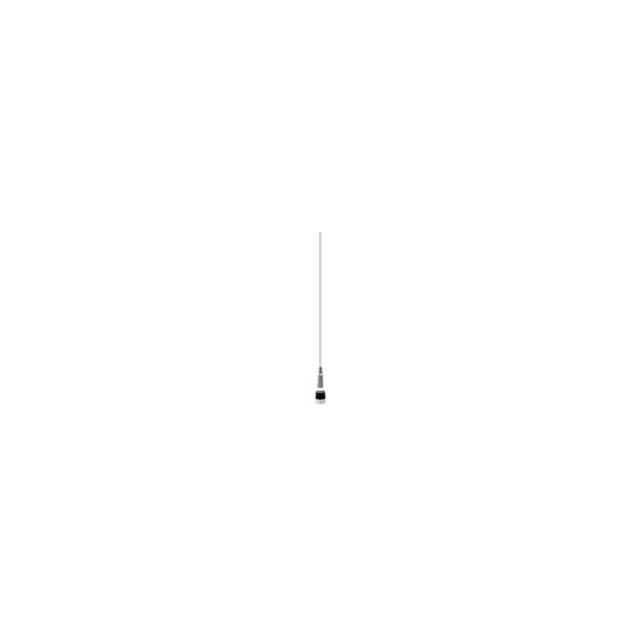

BMUF9115 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Amphenol PCTEL. Its product description is RF ANT 918MHZ WHIP STR NMO MNT. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for BMUF9115
- Description：RF ANT 918MHZ WHIP STR NMO MNT
- Series：MUF
- Mfr：Amphenol PCTEL
- Package：Bag
- RF Family/Standard：Cellular
- Frequency Group：UHF (300MHz ~ 1GHz)
- Frequency (Center/Band)：918MHz
- Frequency Range：896MHz ~ 940MHz
- Antenna Type：Whip, Straight
- Number of Bands：1
- VSWR：1.5
- Return Loss：-
- Gain：5dBi
- Features：-
- Termination：-
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：NMO Mount
- Height (Max)：32.000" (812.80mm)
- Applications：Cellular, LTE
- Power - Max：125 W
Antennas RF datasheet and documents for BMUF9115
Antennas RF Overview
The Amphenol PCTEL BMUF9115 is a cellular antenna operating in the UHF frequency group, specifically centered at 918 MHz with a range of 896-940 MHz. It provides a gain of 5 dBi and supports up to 125 Watts of power. The unit features a black finish and an elevated feed design without requiring a ground plane. Constructed with stainless steel whip material, it is categorized under the MUF series for LTE and cellular applications.
Antennas RF Feature Summary
- Elevated feed architecture eliminates the need for a ground plane during installation
- Stainless steel whip construction ensures durability for outdoor deployments
- Black aesthetic finish suitable for discreet indoor and outdoor integration
Antennas RF Applications
- LTE network infrastructure deployment
- Cellular communication base stations
- Indoor distributed antenna systems
- Outdoor wireless coverage expansion
Antennas RF Procurement Notes
Verify that the specific order matches the BMUF9115 designation to ensure correct frequency alignment within the 896-940 MHz band. Confirm that the 125 Watt power rating meets system requirements. Check for any specific mounting hardware requirements associated with the elevated feed design. Ensure environmental sealing specifications align with the intended deployment location. Validate compatibility with existing connector types on the receiving equipment.
Antennas RF Selection Notes
Select this model when a ground-plane-free solution is required for simplified mounting. Consider the 5 dBi gain for moderate coverage needs in cellular bands. Evaluate the stainless steel material for corrosion resistance in harsh environments. Assess the 125 Watt capacity against peak signal loads. Compare physical dimensions against available space constraints for panel or pole mounting scenarios.
Antennas RF Part Context
This component belongs to the MUF series from Amphenol PCTEL, focusing on mobile product families. It serves as a specialized antenna for cellular frequencies, distinct from general-purpose RF components. The brand leverages its expertise in wireless technology solutions to provide purpose-built antenna systems for telecommunications infrastructure.
Antennas RF Replacement Considerations
No direct substitute part numbers are publicly confirmed in the provided documentation. Verify compatibility with existing system architectures before considering alternative models. Consult official Amphenol PCTEL resources for updated series replacements if discontinuation occurs.
