BNX005-01

Overview

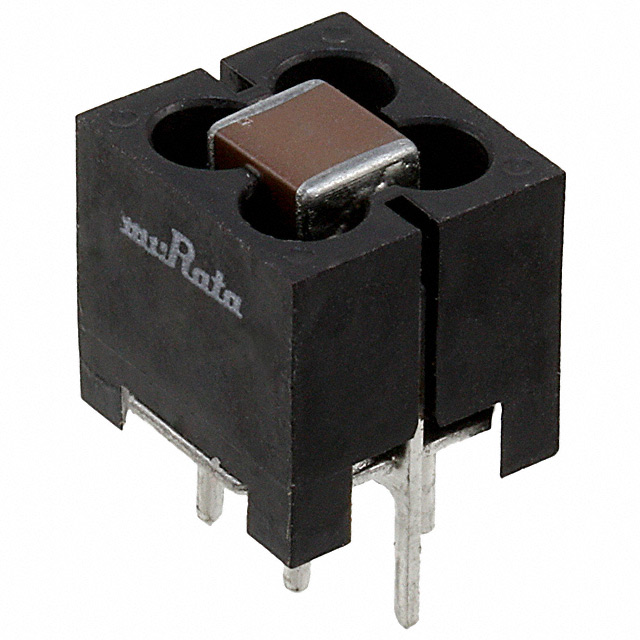

The Murata BNX005-01 is a fifth-order, two-channel LC EMI filter designed as a low-pass network. It provides high insertion loss across wide frequency ranges from 1 MHz to 1 GHz. The component operates within a temperature range of -30°C to 85°C and features a rated voltage of 50V. It utilizes through-hole mounting technology for integration into electronic circuits.

Feature Summary

• Provides high insertion loss in wide frequency ranges
• Effective for impulse noise suppression
• Designed as a low-pass network

Applications

• Data lines for mobile devices

Procurement Notes

Verify the specific datasheet version (e.g., V01) on the official Murata website to ensure accurate electrical characteristics and mechanical dimensions. Confirm that the through-hole package type matches the target PCB layout requirements before finalizing procurement decisions.

Selection Notes

Select this component when designing circuits requiring robust EMI suppression in the 1 MHz to 1 GHz spectrum. Ensure the application environment stays within the specified -30°C to 85°C operating temperature range and does not exceed the 50V rated voltage limit.

Part Context

This part belongs to the Block Type EMIFIL series by Murata Manufacturing Co., Ltd. It is categorized under Noise Suppression Products and EMI Suppression Filters. The device serves as an LC combined filter solution for managing electromagnetic interference in sensitive electronic systems.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
