BNX016-01

Overview

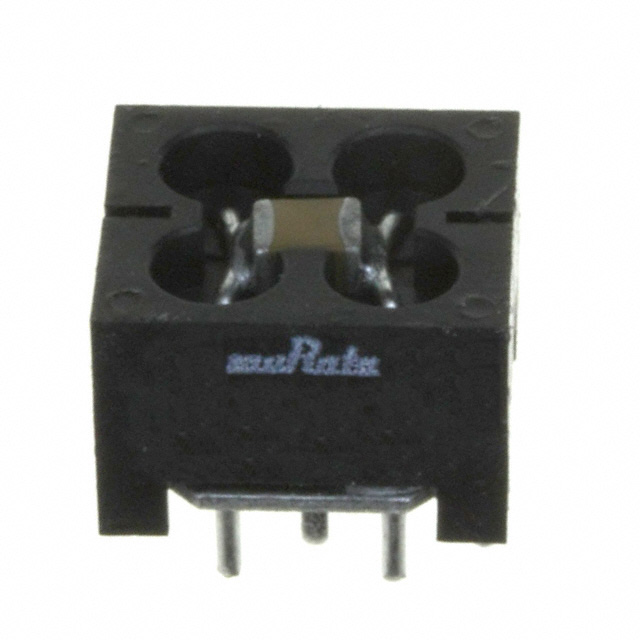

The Murata BNX016-01 is a block-type LC EMI filter circuit designed for DC power line noise suppression. It features a 25V voltage rating and supports up to 15A of continuous current. The component operates within a frequency range of 100 kHz to 1 GHz, providing 40 dB attenuation. It utilizes radial through-hole mounting with four leads. The unit measures 12.00 mm in length, 11.00 mm in width, and 8.50 mm in height. Operating temperatures span from -40°C to +125°C.

Feature Summary

• Provides ultra-high performance EMI suppression for large current applications
• Supports wide frequency band compatibility for effective noise reduction
• Features a low-profile block type design suitable for space-constrained layouts

Applications

• DC power line noise suppression
• Mobile device data lines
• AI server power circuits

Procurement Notes

Verify the specific package configuration upon ordering, as sources indicate variations between bulk and tape-and-reel packaging. Confirm RoHS3 compliance status directly with the manufacturer or authorized distributor documentation. Ensure the selected variant matches the required leaded termination style for your assembly process.

Selection Notes

Select this component when high current handling capacity of 15A is required alongside broad frequency filtering. The 25V rating limits suitability to lower voltage DC systems. Consider the physical dimensions and through-hole requirements during PCB layout planning to ensure adequate clearance and mechanical stability.

Part Context

This part belongs to the Murata EMIFIL BNX series, which specializes in EMI network filters. These components are engineered for robust noise suppression in demanding electronic environments. The series offers various configurations tailored for different current and voltage specifications while maintaining consistent filtering performance characteristics.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Verify electrical parameters such as current rating, voltage tolerance, and attenuation curves against potential alternatives before substitution.
