BP0AA3700A700

Overview

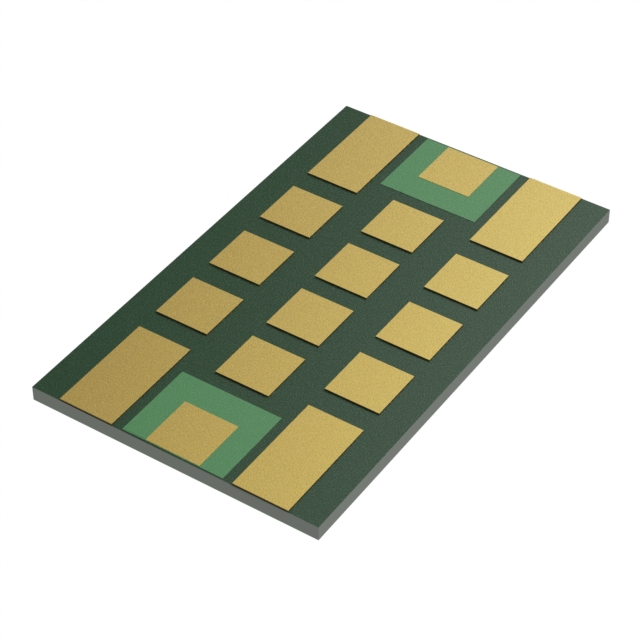

The BP0AA3700A700 is a bandpass RF filter manufactured by KYOCERA AVX, designed for signal conditioning applications. It operates with a center frequency of 3700 MHz and features a bandwidth of 1.513 GHz. The component exhibits an insertion loss of 5 dB and is housed in a 16-SMD, no-lead package suitable for surface mount technology.

Feature Summary

• Provides bandpass filtering for radio frequency signals
• Utilizes a compact 16-SMD no-lead package design
• Engineered for high-frequency signal conditioning

Applications

• RF signal conditioning circuits
• Radio frequency communication systems
• Bandpass filtering in electronic devices

Procurement Notes

Verify the specific datasheet version and ordering suffixes to ensure compatibility with your design requirements. Confirm lead times and minimum order quantities directly with authorized distributors or the manufacturer, as availability may vary. Ensure the component meets all relevant regulatory standards for your target market before finalizing procurement decisions.

Selection Notes

Select this component when a bandpass filter centered at 3700 MHz with a 1.513 GHz bandwidth is required. The 5 dB insertion loss specification should be evaluated against system sensitivity needs. The 16-SMD no-lead package dictates specific PCB footprint and soldering process considerations during integration.

Part Context

This part belongs to the KYOCERA AVX RF filters portfolio, specifically within the bandpass filter category. It is distinct from SAW duplexers and capacitors offered by the same manufacturer, serving a dedicated role in frequency selection and interference rejection within RF front-end architectures.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify electrical parameters such as center frequency, bandwidth, and insertion loss against potential alternatives to ensure functional equivalence.
