BP0CA1100A7TR

Overview

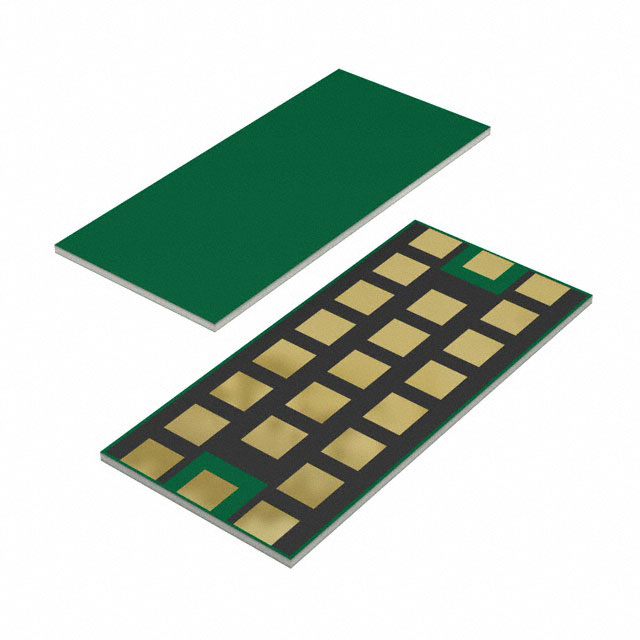

The KYOCERA AVX BP0CA1100A7TR is a surface-mount bandpass RF filter utilizing thin-film multilayer technology. It operates at a center frequency of 1.1 GHz with a bandwidth of 530 MHz. The component features an insertion loss of 1.18 dB and is housed in a 23-ULGA package measuring 8.674 x 3.975 mm x 0.5588 mm. It supports a temperature range from -55°C to +85°C.

Feature Summary

• Thin-film multilayer construction for high-frequency performance
• Surface-mount design for automated assembly
• Compact ULGA package format

Applications

• Power conversion systems
• Advanced Driver Assistance Systems (ADAS)
• Lighting applications

Procurement Notes

Verify the specific package dimensions and thermal ratings against your PCB layout constraints before finalizing the order. Confirm that the operating temperature range meets your environmental requirements. Ensure compatibility with your surface-mount assembly processes. Check for any recent product change notices regarding material or manufacturing updates.

Selection Notes

Select this component when a compact bandpass filter is required for 1.1 GHz applications. The thin-film technology offers stability suitable for demanding environments. Consider the 23-ULGA footprint for space-constrained designs. Evaluate the insertion loss specifications against system signal integrity needs.

Part Context

This part belongs to the BP MLO series of RF filters from KYOCERA AVX. These components are engineered for radio frequency signal conditioning. The series leverages advanced thin-film deposition techniques to achieve precise frequency characteristics in small form factors.

Replacement Considerations

Consult official manufacturer documentation for verified substitute part numbers. Do not assume cross-compatibility with other series without technical validation.
