BP0DA0650A700

Overview

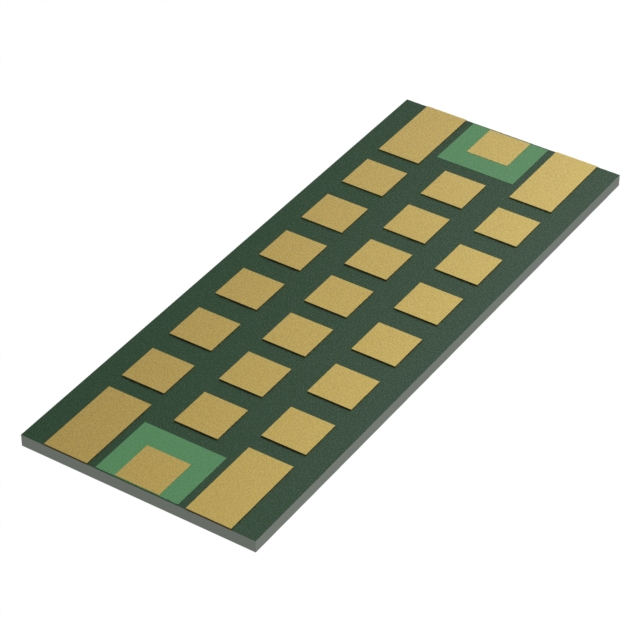

The BP0DA0650A700 is a bandpass filter manufactured by KYOCERA AVX, designed for signal conditioning applications. It operates with a center frequency of 650 MHz and provides a bandwidth of 297 MHz. The component features a maximum insertion loss of 5 dB and maintains a standard impedance of 50 Ohms. It utilizes surface mount technology (SMD/SMT) for board mounting and is housed in a compact package suitable for high-frequency RF circuits.

Feature Summary

• Provides selective frequency filtering within the specified bandpass range
• Utilizes surface mount construction for automated PCB assembly
• Maintains 50 Ohm impedance compatibility for RF signal integrity

Applications

• RF signal conditioning in communication systems
• Frequency selection in wireless transceivers
• Interference rejection in base station equipment

Procurement Notes

Verify the specific datasheet version to confirm mechanical dimensions and electrical tolerances before integration. Confirm RoHS compliance status and end-of-life notifications directly with the manufacturer or authorized distributors. Ensure that the selected packaging format matches the production line requirements for surface mount placement.

Selection Notes

Select this component when a fixed center frequency of 650 MHz is required with moderate bandwidth constraints. Evaluate the 5 dB insertion loss against system link budget requirements. Compare physical footprint and thermal characteristics against alternative bandpass filters in the KYOCERA AVX portfolio to ensure compatibility with existing board layouts.

Part Context

This part belongs to the MLO series of passive components from KYOCERA AVX, which specializes in thin-film microwave filters. These components are engineered for high performance in demanding RF environments, offering stable electrical characteristics across operating temperatures. The series supports various frequency bands for diverse telecommunications and industrial applications.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer's official cross-reference guides or engineering support channels for verified alternatives.
