BP0EA0290A700

Overview

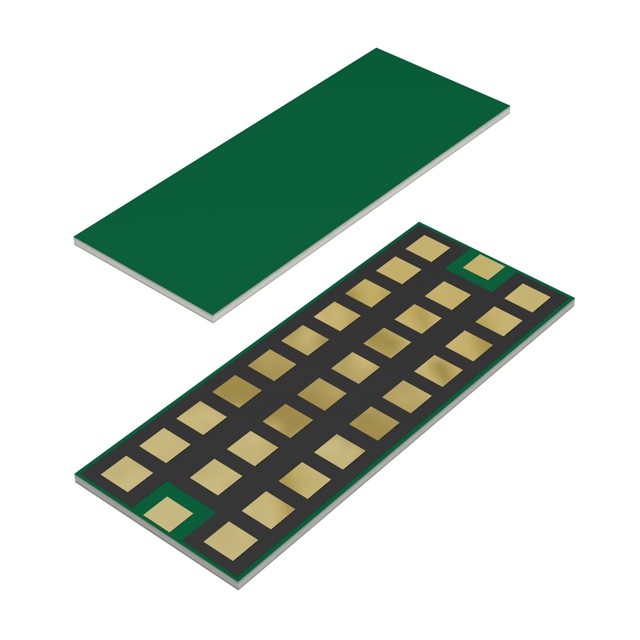

The BP0EA0290A700 is a surface-mount bandpass filter from the KYOCERA AVX BP MLO series, designed for signal conditioning applications. It operates at a center frequency of 290 MHz with a 50 Ohm impedance. The component features an insertion loss of 1.7 dB and utilizes a 30-SMD, No Lead package measuring 11.684 mm x 4.318 mm x 0.5588 mm. It functions within a temperature range of -55°C to +85°C.

Feature Summary

• Surface-mount construction for board integration
• Bandpass filtering capability at 290 MHz
• RoHS compliant manufacturing

Applications

• RF signal conditioning circuits
• Wireless communication systems
• Industrial electronic equipment

Procurement Notes

Verify current availability status as distribution channels may vary. Confirm RoHS compliance details through official manufacturer documentation prior to integration. Ensure compatibility with existing PCB footprint dimensions and thermal management requirements for the specified operating temperature range.

Selection Notes

Select this component for applications requiring precise 290 MHz bandpass filtering with low profile surface-mount packaging. Consider the 1.7 dB insertion loss and 50 Ohm impedance match when designing RF signal paths. Verify that the 30-SMD package aligns with automated assembly capabilities and spatial constraints.

Part Context

This part belongs to the BP MLO series of RF filters manufactured by KYOCERA AVX. The series focuses on miniaturized signal conditioning solutions using advanced ceramic technologies. These components are engineered for reliability in demanding electronic environments.

Replacement Considerations

No direct substitute part numbers are publicly confirmed for this specific model. Evaluate alternative bandpass filters with matching 290 MHz center frequency, 50 Ohm impedance, and compatible SMD package dimensions if discontinuation occurs.
