BP0EA3180A7TR

Overview

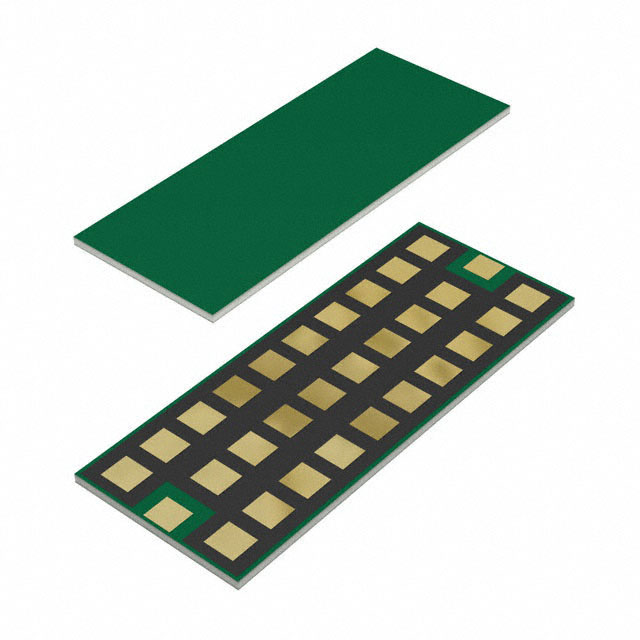

The KYOCERA AVX BP0EA3180A7TR is a surface-mount bandpass filter utilizing thin-film multilayer technology. It operates within a frequency range of 2450 MHz to 4140 MHz, providing a bandwidth of 1690 MHz. The component features a 50 Ohm impedance and an insertion loss of 5 dB. Designed for board mounting, it supports operating temperatures from -55°C to +85°C. The device is housed in a compact package measuring 11.684 mm x 4.318 mm x 0.5588 mm.

Feature Summary

• Thin-film multilayer construction for high-frequency performance
• Surface-mount design for automated assembly
• Wide bandwidth capability for signal conditioning

Applications

• Power conversion systems
• Advanced Driver Assistance Systems (ADAS)
• Automotive lighting applications

Procurement Notes

Verify the specific datasheet version for the BP0EA3180A7TR to confirm exact electrical tolerances and mechanical dimensions prior to integration. Ensure compatibility with the target PCB footprint and thermal management requirements. Cross-reference official manufacturer documentation for any recent product change notices or material composition updates to guarantee compliance with current project specifications.

Selection Notes

Select this component when a wide-bandwidth bandpass filter is required for automotive or industrial RF applications. The thin-film technology offers stability suitable for power conversion and ADAS environments. Consider the physical dimensions and SMD termination style for space-constrained designs requiring robust signal filtering between 2.45 GHz and 4.14 GHz.

Part Context

This part belongs to the BP MLO series of signal conditioning components from KYOCERA AVX. These filters are engineered using advanced thin-film processes to deliver consistent performance in demanding electronic environments. The series is widely utilized in sectors requiring reliable RF signal management, such as automotive electronics and industrial control systems.

Replacement Considerations

Consult official KYOCERA AVX documentation for verified substitute part numbers. Ensure any replacement maintains identical impedance, frequency range, and mechanical footprint to preserve circuit integrity.
