BP0EA3430A7TR

Overview

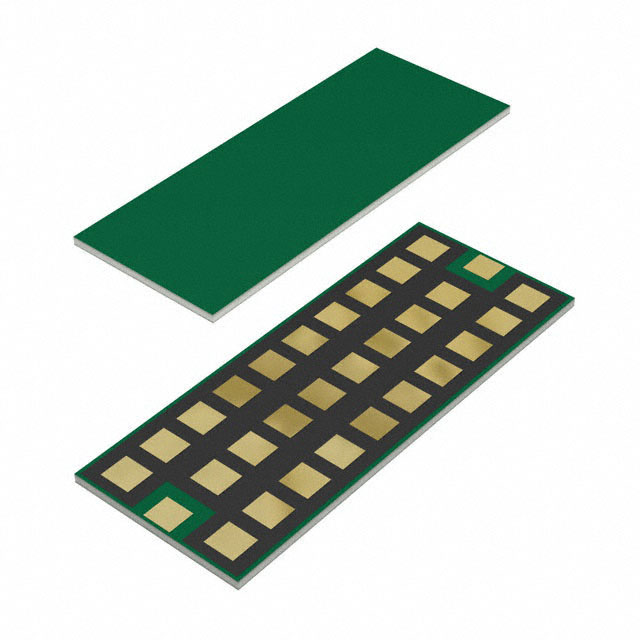

The KYOCERA AVX BP0EA3430A7TR is a surface-mount bandpass filter designed for signal conditioning applications. It operates within a frequency range of 2.64 GHz to 4.46 GHz, centered around 3.43 GHz, with a bandwidth of 1.82 GHz. The component features a 50 Ohm impedance and utilizes SMD/SMT termination styles. It is housed in a Size 4617 package and supports board mounting. The device functions reliably across an operating temperature range from -55°C to +85°C. Key electrical specifications include an insertion loss of 1 dB. The product belongs to the BP MLO series and is available in reel, cut tape, or MouseReel packaging formats.

Feature Summary

• Provides selective frequency filtering within the specified microwave band
• Utilizes ceramic material construction for stable RF performance
• Designed for direct surface mount integration onto printed circuit boards

Applications

• Wireless communication systems requiring specific band selection
• RF front-end modules for signal integrity management
• Microwave circuitry operating within the defined frequency spectrum

Procurement Notes

Verify the exact part number suffix against official manufacturer documentation to ensure correct packaging configuration. Confirm that the required operating temperature range aligns with your system's environmental constraints. Check for any specific handling requirements associated with surface-mount ceramic components during assembly processes.

Selection Notes

Select this component when a bandpass characteristic is required for frequencies between 2.64 GHz and 4.46 GHz. Ensure the PCB layout accommodates the physical dimensions of the Size 4617 package. Verify that the 50 Ohm system impedance matches your design requirements to minimize signal reflection and maintain optimal power transfer efficiency.

Part Context

This component is part of the BP MLO series from KYOCERA AVX, which focuses on signal conditioning solutions. The series includes various filter types tailored for different frequency bands and impedance requirements. This specific model addresses needs for broadband filtering in compact form factors suitable for modern electronic devices.

FAQ

What is the center frequency of this filter?

The center frequency is 3.43 GHz.

Does this component support high-temperature operation?

Yes, it supports a maximum operating temperature of +85°C.
