BP0EA4680A7TR

Overview

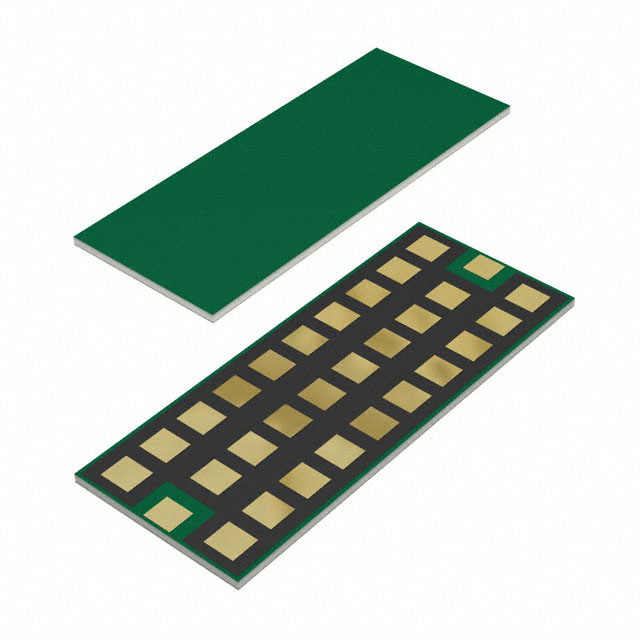

The BP0EA4680A7TR is a bandpass filter from the KYOCERA AVX BP MLO series, designed for signal conditioning applications. It operates within a frequency range of 3.70 GHz to 5.93 GHz with a center frequency of 4.68 GHz and a bandwidth of 2.23 GHz. The component features a 50 Ohm impedance and utilizes SMD/SMT termination types. It is housed in a Size 4617 package measuring 11.684 mm x 4.318 mm x 0.5588 mm. The device supports board mounting and functions within an operating temperature range of -55°C to +85°C. Insertion loss is specified at 0.99 dB.

Feature Summary

• Utilizes thin-film multilayer technology for high-frequency performance
• Provides precise bandpass filtering for RF signal conditioning
• Designed for compact surface-mount integration

Applications

• Automotive Advanced Driver Assistance Systems (ADAS)
• Power conversion circuits
• Lighting systems

Procurement Notes

Verify the specific ordering suffix and reel quantity requirements when placing orders. Confirm that the selected variant matches the required frequency specifications and package dimensions for your design. Ensure compliance with RoHS directives if applicable to your region. Check current availability as lead times may vary based on production schedules. Validate that the component meets all environmental operating conditions required for your final assembly process.

Selection Notes

Select this component when a bandpass filter with a center frequency of 4.68 GHz is required. Consider the Size 4617 footprint for space-constrained designs. Evaluate the insertion loss and impedance matching against system requirements. Ensure the operating temperature range suits the intended environment. Compare alternative frequencies within the BP MLO series if different spectral characteristics are needed.

Part Context

This part belongs to the BP MLO series of bandpass filters manufactured by KYOCERA AVX. These components are engineered using thin-film multilayer technology to deliver reliable performance in demanding RF environments. The series is commonly utilized in automotive and industrial applications where stable signal filtering is critical for system integrity and noise reduction.

Replacement Considerations

Consult official substitution lists for compatible alternatives. Verify that any replacement maintains identical frequency ranges, impedance, and physical dimensions. Ensure thermal and electrical characteristics match the original design requirements before implementation.
