BP0IA0110A700

Overview

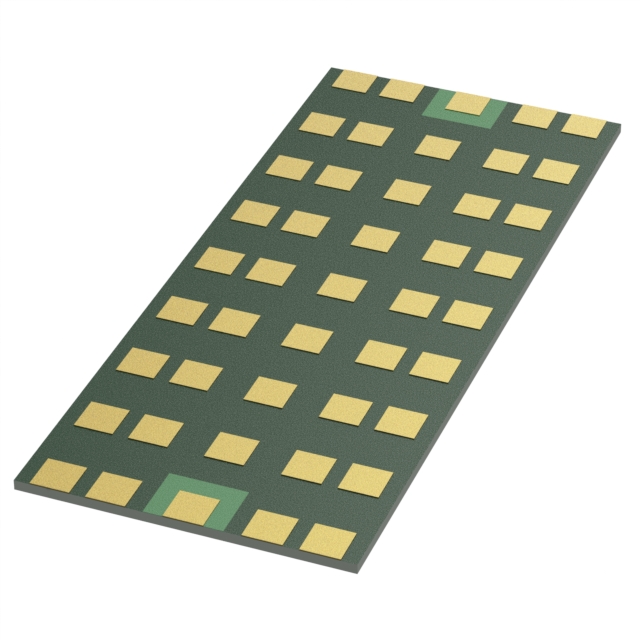

The BP0IA0110A700 is a bandpass RF filter manufactured by KYOCERA AVX, designed for signal conditioning applications. It operates at a center frequency of 110 MHz with a bandwidth of 1.3 GHz. The component features a 50 Ohm impedance and utilizes SMD/SMT termination types for board mounting. It is housed in a compact 30-ULGA package, measuring 11.68 mm in length, 4.32 mm in width, and 0.56 mm in maximum height. The device supports an operating temperature range from -55°C to +85°C and exhibits an insertion loss of 0.96 dB.

Feature Summary

• Provides bandpass filtering capabilities centered at 110 MHz for RF signal conditioning
• Utilizes surface mount technology (SMD/SMT) for direct board integration
• Maintains a standard 50 Ohm system impedance for RF compatibility
• Operates reliably within an extended industrial temperature range

Applications

• RF signal conditioning circuits
• Communication systems requiring 110 MHz bandpass filtering
• Industrial electronic equipment operating in harsh thermal environments

Procurement Notes

Verify the specific manufacturing lot and RoHS compliance status directly with the manufacturer or authorized distributors before procurement. Confirm that the 30-ULGA package dimensions align with your PCB footprint requirements. Ensure the 110 MHz center frequency meets your system design specifications. Check for any recent product change notices or end-of-life announcements that may affect long-term supply availability.

Selection Notes

Select this component when a precise 110 MHz bandpass response is required in a compact form factor. The 30-ULGA package offers a small footprint suitable for space-constrained designs. Consider the 0.96 dB insertion loss and 50 Ohm impedance match for system efficiency. Verify that the -55°C to +85°C operating range covers your environmental conditions. Compare against other KYOCERA AVX BP series filters if different frequency bands are needed.

Part Context

This part belongs to the BP Series of MLO® bandpass filters from KYOCERA AVX. These components are engineered for high-frequency RF applications using advanced thin-film multilayer technology. The series is known for providing stable performance and consistent electrical characteristics across varying temperatures. The BP0IA0110A700 specifically targets the 110 MHz frequency band within this broader portfolio.

Replacement Considerations

No direct substitute part numbers are publicly confirmed for this specific model.
