BP1206A3400ANTR500

Overview

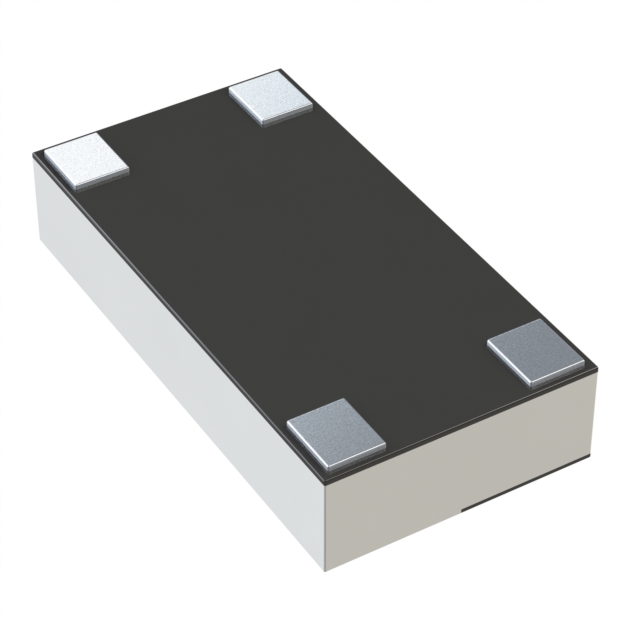

The BP1206A3400ANTR500 is a surface-mount bandpass filter from the KYOCERA AVX MLO series, designed for signal conditioning applications. It operates at a center frequency of 3.4 GHz and utilizes a 1206 (3216 metric) package footprint. The component is supplied in a reel packaging format with a standard factory quantity of 500 units per reel.

Feature Summary

• High-performance surface-mount construction
• Low insertion loss characteristics
• Steep roll-off response
• High rejection of out-of-band signals

Applications

• RF signal conditioning
• Wireless communication systems
• Signal filtering in RF front-ends

Procurement Notes

Verify the specific ordering suffix against manufacturer documentation to confirm packaging configuration and reel quantity. Confirm RoHS compliance status and lead times directly with authorized distributors or the manufacturer prior to procurement. Ensure the part number matches the exact electrical specifications required for the design.

Selection Notes

Select this component when a compact surface-mount bandpass filter is required for high-frequency applications around 3.4 GHz. Consider the MLO series attributes such as low insertion loss and steep roll-off for effective out-of-band rejection. Verify that the 1206 package dimensions fit the available PCB real estate and that the operating frequency aligns with system requirements.

Part Context

This component belongs to the KYOCERA AVX MLO series of bandpass filters. These filters are engineered for high performance in surface-mount designs, offering advantages like low insertion loss and steep roll-offs. The series is intended for demanding RF applications requiring precise signal conditioning within a small form factor.

Replacement Considerations

Consult official KYOCERA AVX substitution guides for verified alternatives. Cross-reference center frequency, bandwidth, and package dimensions when evaluating potential substitutes.
