BP2816A0280SNTR50

Overview

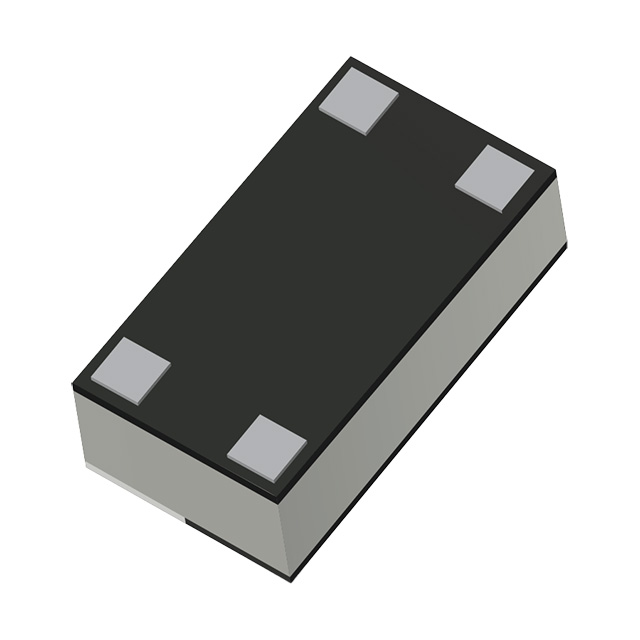

The BP2816A0280SNTR50 is a high-performance surface-mount bandpass filter from the KYOCERA AVX MLO™ series. It features a center frequency of 280MHz and a bandwidth of 80MHz. The component exhibits low insertion loss of -1.5dB and offers steep roll-offs with high rejection of out-of-band signals. Designed for RF applications, it utilizes integrated thin-film technology to ensure excellent high-frequency performance and structural durability.

Feature Summary

• High-performance surface-mount construction suitable for automated assembly processes
• Low insertion loss combined with steep roll-offs for effective signal filtering
• Robust structure compatible with various automatic soldering techniques including reflow and wave soldering

Applications

• High-frequency wireless systems requiring precise bandpass filtering
• RF front-end modules in communication equipment
• Signal conditioning circuits demanding high out-of-band rejection

Procurement Notes

Verify the specific suffix '50' against official datasheets to confirm reel quantity or tape-and-reel specifications. Ensure compatibility with 50Ω system impedance requirements. Confirm RoHS compliance status through current manufacturer documentation before integration into production workflows.

Selection Notes

Select this component when a 280MHz center frequency with 80MHz bandwidth is required. Consider its SMD package for space-constrained PCB layouts. Evaluate its thermal stability and operating temperature range against environmental conditions. Compare insertion loss characteristics with alternative filters to meet specific signal integrity targets.

Part Context

This part belongs to the BP2816 series of LGA bandpass filters manufactured by KYOCERA AVX. The series leverages Integrated Thin Film (ITF) technology to deliver consistent performance across various RF applications. These components are designed to replace traditional discrete filter solutions with a more compact and reliable surface-mount alternative.

Replacement Considerations

Direct substitutes include other parts within the BP2816 series with matching center frequencies. Verify pinout compatibility and electrical parameters such as bandwidth and insertion loss when considering cross-brand alternatives.
