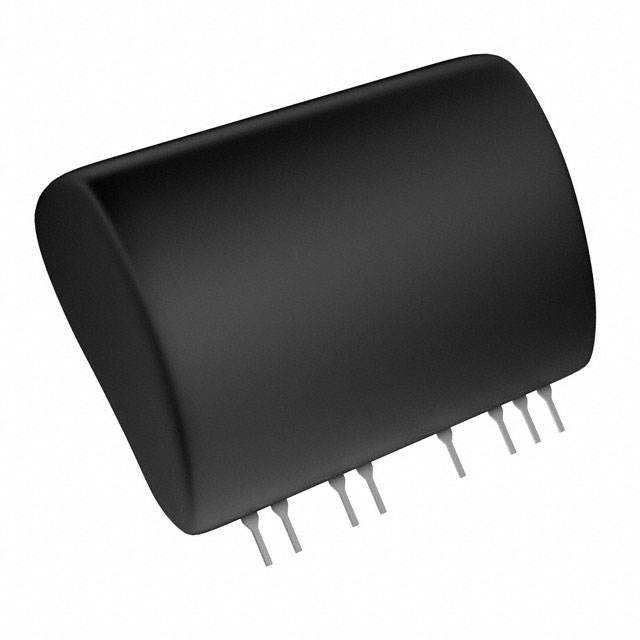

BP5324A

Description：IC REG BOOST 12V 250MA 12SIP
Series：-
Mfr：Rohm Semiconductor
Package：Tray

SKU:01341ab6d588 Category: Voltage Regulators - DC DC Switching Regulators Brand: Rohm Semiconductor

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IC REG BOOST 12V 250MA 12SIP
Series：-
Mfr：Rohm Semiconductor
Package：Tray
Function：Step-Up
Output Configuration：Positive, Isolation Capable
Topology：Boost
Output Type：Fixed
Number of Outputs：1
Voltage - Input (Min)：4.5V
Voltage - Input (Max)：5.5V
Voltage - Output (Min/Fixed)：12V
Voltage - Output (Max)：-
Current - Output：250mA (Switch)
Frequency - Switching：-
Synchronous Rectifier：No
Operating Temperature：-25°C ~ 80°C (TA)
Mounting Type：Through Hole
Package / Case：12-SIP, 8 Leads
Supplier Device Package：12-SIP
Grade：-
Qualification：-

Download product information

BP5324A

Overview

The BP5324A is an isolated DC/DC converter manufactured by Rohm Semiconductor, housed in a 12-SIP package. It functions as a boost-type switching regulator with a fixed 12V output and a maximum current of 250mA. The device operates within an input voltage range of 4.5V to 5.5V. Designed for applications requiring isolation, it minimizes external component requirements.

Feature Summary

Provides galvanic isolation between input and output circuits
Utilizes a boost topology for step-up voltage conversion
Requires minimal external components for operation

Applications

LED driver circuits
Relay driving systems
Computer peripheral power supplies

Procurement Notes

Verify the obsolete status of this component before procurement planning. Confirm package integrity and datasheet version compatibility with existing designs. Check for authorized distributors offering remaining stock or valid alternatives from Rohm Semiconductor.

Selection Notes

Select this part only if a fixed 12V isolated output is required. Ensure the input supply stays within the 4.5V to 5.5V range. Consider the 250mA load limit and SIP packaging constraints during board layout.

Part Context

This component belongs to Rohm's line of isolated DC/DC converters. It is distinct from non-isolated buck converters like the BD9x series. The BP5324A specifically addresses applications needing electrical isolation with simple integration.

Replacement Considerations

No public substitute part numbers are confirmed in available documentation. Due to the obsolete lifecycle status, direct replacements must be sourced through manufacturer channels or verified engineering equivalents.
