Product Detailed Parameters

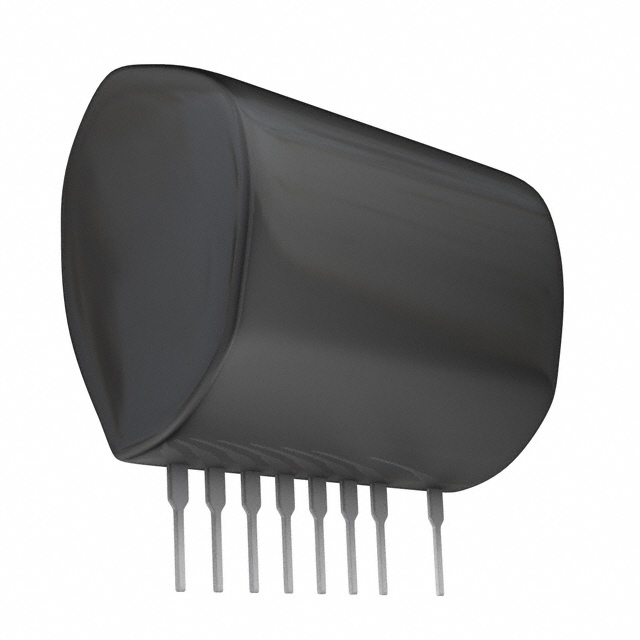

- Description：IC MOTOR DRIVER 12V-15V 9SIP
- Series：-
- Mfr：Rohm Semiconductor
- Package：Tray
- Motor Type - Stepper：-
- Motor Type - AC, DC：Brushed DC
- Function：Driver - Fully Integrated, Control and Power Stage
- Output Configuration：Low Side
- Interface：Analog, PWM
- Technology：Bipolar
- Step Resolution：-
- Applications：General Purpose
- Current - Output：400mA
- Voltage - Supply：12V ~ 15V
- Voltage - Load：11V ~ 13V
- Operating Temperature：-10°C ~ 60°C (TA)
- Mounting Type：Through Hole
- Package / Case：9-SIP, 8 Leads
- Supplier Device Package：9-SIP
- Grade：-
- Qualification：-
Download product information
Overview
The BP5801 is a dedicated motor driver IC designed for automotive applications, operating within a supply voltage range of 12V to 15V. Packaged in a 9-SIP configuration, this component integrates power stages and control logic to drive motors efficiently. It serves as a specialized solution for managing actuator movements in vehicle systems, ensuring reliable performance under standard automotive electrical conditions.
Feature Summary
- Integrated motor driving capability optimized for 12V-15V automotive power systems
- Compact 9-SIP packaging design suitable for space-constrained electronic assemblies
Applications
- Automotive actuator control systems
- Vehicle interior motor drives
- Power management modules requiring integrated motor solutions
Procurement Notes
Verify the specific datasheet revision and application notes provided by ROHM Semiconductor before integration. Confirm that the 12V-15V operating window aligns with your system's power rail stability. Ensure the 9-SIP footprint matches your PCB layout requirements precisely to avoid mechanical interference.
Selection Notes
Select the BP5801 when a compact, integrated solution is required for low-voltage automotive motor applications. Consider its 9-SIP form factor if board space is limited compared to larger DIP or SOIC packages. Evaluate thermal dissipation needs based on the expected load current and ambient temperature conditions within the vehicle environment.
Part Context
This component belongs to ROHM's portfolio of power management and motor control integrated circuits tailored for the automotive sector. It complements other driver ICs like the BD63800MUF-C by offering a specialized, single-chip approach for specific voltage ranges and package constraints in modern vehicle electronics.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Engineers should consult official ROHM resources for potential cross-references or newer generation replacements if this specific model becomes obsolete.
