BPAL00060645101T09

Fixed Inductors Overview

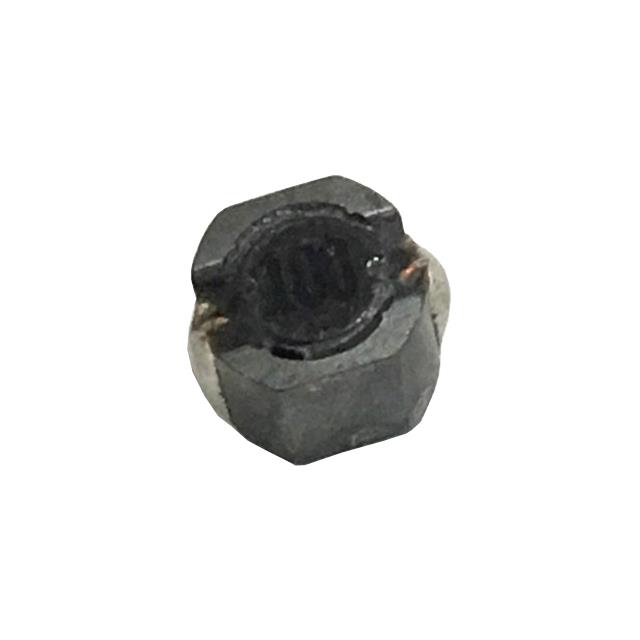

The BPAL00060645101T09 is a shielded surface-mount power inductor from Pulse Electronics, part of the BPAL series. It features a ferrite core and measures 6 mm x 6 mm x 4.5 mm. The component provides an inductance of 100 µH with a tolerance of ±20%. It supports a maximum DC current of 860 mA and has a maximum DC resistance of 320 mOhms. The device operates within a temperature range of -55°C to +125°C and is designed for PCB mounting applications.

Fixed Inductors Feature Summary

• Shielded construction minimizes electromagnetic interference
• Ferrite core material ensures stable performance
• Surface-mount design facilitates automated assembly

Fixed Inductors Applications

• Power supply circuits
• DC-DC converters
• Signal filtering

Fixed Inductors Procurement Notes

Verify the specific electrical parameters against the official manufacturer datasheet before integration. Confirm that the package dimensions and pin configuration match the target PCB footprint. Ensure the operating temperature range meets the environmental requirements of the final application. Cross-reference the manufacturer part number to avoid confusion with similar series components.

Fixed Inductors Selection Notes

Select this component when a high-inductance value is required in a compact shielded form factor. Consider the saturation current and thermal characteristics relative to the circuit load. Evaluate the physical size constraints against the available board space. Compare alternative values within the same series if different inductance or current ratings are needed.

Fixed Inductors Part Context

This component belongs to the BPAL series of power inductors manufactured by Pulse Electronics. The series focuses on shielded SMD designs suitable for modern electronics requiring reduced magnetic coupling. It falls under the broader category of passive components used for energy storage and noise suppression in electronic systems.

Fixed Inductors Replacement Considerations

Consult the official datasheet for direct cross-references. Verify compatibility of inductance, current rating, and physical dimensions with any substitute part.
