BPF-AS1600-75+

Overview

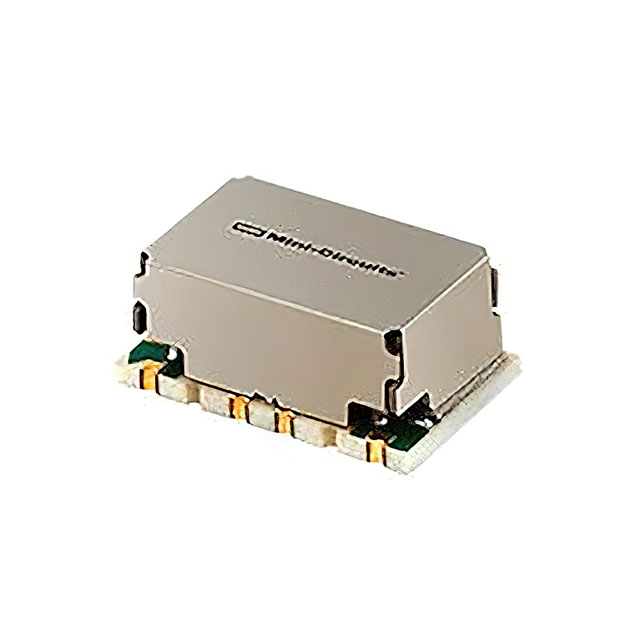

The BPF-AS1600-75+ is a surface-mount bandpass filter from Mini-Circuits, designed using lumped LC technology within a shielded case. It operates with a center frequency of 1600 MHz and a bandwidth of 1300 MHz (950 MHz to 2250 MHz). The component features a 75Ω impedance and supports an RF input power range of 0.08W to 5W. It functions within an operating temperature range of -40°C to +85°C. The physical dimensions are approximately 0.433 inches by 0.433 inches with a maximum height of 0.197 inches (5.00 mm). It utilizes a 12-SMD module package.

Feature Summary

• Provides signal passage within a specific frequency band while rejecting unwanted out-of-band signals
• Utilizes shielded case construction for electromagnetic interference protection
• Fabricated using surface-mount technology for compact integration

Applications

• Harmonic rejection in RF circuits
• Transmitter and receiver signal conditioning
• Industrial microwave and RF systems
• Telecommunication and broadband networks

Procurement Notes

Verify the exact center frequency and bandwidth specifications against the manufacturer's official datasheet prior to procurement. Confirm that the 75Ω impedance aligns with the system design requirements. Ensure the operating temperature range meets the environmental conditions of the intended application. Check for RoHS compliance status if required by project regulations. Validate the surface-mount package dimensions against the PCB layout constraints.

Selection Notes

Select this component when a 75Ω impedance interface is required for bandpass filtering applications. Consider the 1600 MHz center frequency and 1300 MHz bandwidth for suitable signal processing needs. Evaluate the power handling capabilities against the expected RF input levels. Assess the physical size constraints to ensure compatibility with the available board space. Verify the operating temperature range matches the operational environment.

Part Context

This part belongs to the BPF series of surface-mount bandpass filters offered by Mini-Circuits. These filters are engineered for use in various RF and microwave applications requiring precise frequency selection. The series includes options with different voltage standing wave ratio characteristics and impedance values. The BPF-AS1600-75+ specifically addresses needs for 75Ω systems in the specified frequency range.

Replacement Considerations

Consult Mini-Circuits documentation for direct substitutes or alternative models within the BPF series that match the required center frequency, bandwidth, and impedance. Verify compatibility regarding package type and pin configuration before substitution.
