Product Detailed Parameters
- Description：RF FILTER BAND PASS 510MHZ 14SMD
- Series：-
- Mfr：Mini-Circuits
- Package：Tape & Reel (TR)
- Frequency：510MHz Center
- Bandwidth：980MHz
- Filter Type：Band Pass
- Ripple：-
- Insertion Loss：2.7dB
- Mounting Type：Surface Mount
- Package / Case：14-SMD Module
- Size / Dimension：0.870" L x 0.800" W (22.10mm x 20.32mm)
- Height (Max)：0.250" (6.35mm)
Download product information
Overview

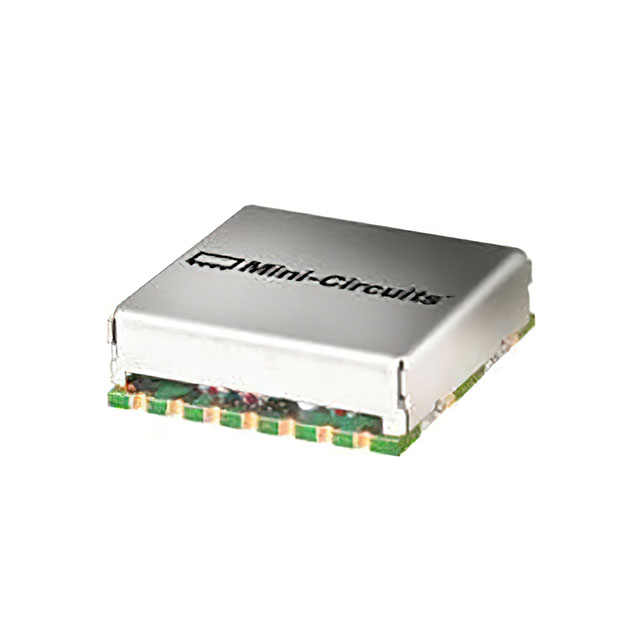

The BPF-C510+ is a wideband bandpass filter from Mini-Circuits, designed for surface-mount technology (SMT) applications. It operates within a frequency range of 20 MHz to 1000 MHz, centered at 510 MHz with a bandwidth of 980 MHz. The component features a 50 Ohm impedance and is housed in a compact shielded package measuring 0.87 inches by 0.80 inches by 0.25 inches. It exhibits an insertion loss of 2.7 dB and is suitable for EMI/RFI suppression tasks.
Feature Summary
- Provides sharp roll-off characteristics for effective signal filtering
- Utilizes a small shielded package to minimize electromagnetic interference
- Fabricated using SMT technology for automated board mounting
Applications
- EMI/RFI suppression circuits
- Power line filtering systems
- Signal conditioning modules
Procurement Notes
Verify the specific datasheet version and RoHS compliance status before procurement. Confirm that the 14-SMD module footprint matches your PCB design requirements. Ensure the operating temperature range aligns with your system's environmental conditions. Check for any recent manufacturing updates that may affect pinout or electrical specifications.
Selection Notes
Select this component when a wideband filter covering 20 MHz to 1000 MHz is required. The 50 Ohm impedance makes it compatible with standard RF systems. Consider the 2.7 dB insertion loss impact on signal strength. The shielded SMT package is ideal for space-constrained designs requiring EMI protection.
Part Context
This part belongs to Mini-Circuits' BPF series of bandpass filters. These components are engineered for high-performance signal processing in RF and microwave applications. The series emphasizes compact form factors and reliable performance across various industrial and communication sectors.
Replacement Considerations
No direct public substitute part numbers are confirmed for this specific model. Evaluate alternative wideband SMT filters from Mini-Circuits or other manufacturers based on matching frequency ranges and impedance values.
