Product Detailed Parameters
- Description：RF FILTER BAND PASS
- Series：1608
- Mfr：Pulse Electronics
- Package：Tape & Reel (TR),Cut Tape (CT)
- Frequency：-
- Bandwidth：-
- Filter Type：Band Pass
- Ripple：-
- Insertion Loss：1.4dB
- Mounting Type：Surface Mount
- Package / Case：-
- Size / Dimension：0.063" L x 0.032" W (1.60mm x 0.80mm)
- Height (Max)：0.028" (0.70mm)
Download product information
Overview

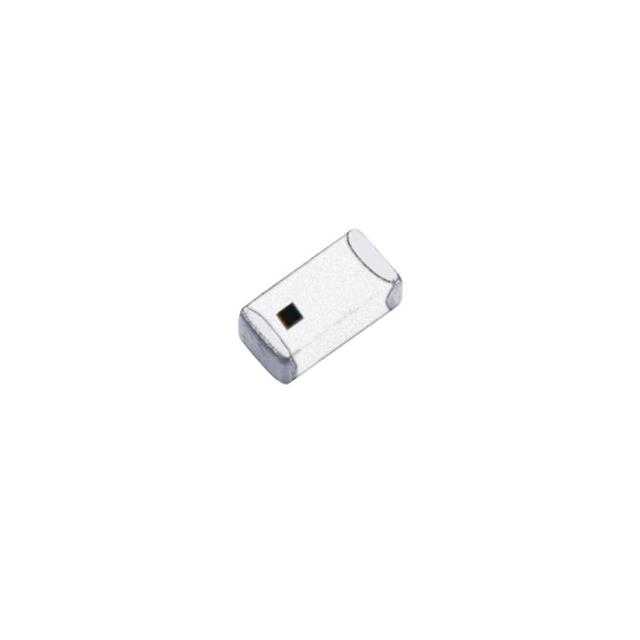

The BPF1608LKAPR6580A is a bandpass filter manufactured by Pulse Electronics, designed for signal conditioning applications. It operates within a frequency range of 6.24 GHz to 8.24 GHz with a specified bandwidth of 1.4 dB. The component features a 50 Ohm impedance and utilizes SMD/SMT termination types for board mounting. It is housed in a compact 0603 (1608 metric) package, measuring 1.6 mm x 0.8 mm x 0.8 mm. The device supports an operating temperature range from -40°C to +85°C.
Feature Summary
- Provides bandpass filtering capabilities for radio frequency signals within the 6.24 GHz to 8.24 GHz spectrum.
- Utilizes a compact 0603 surface-mount package for efficient PCB integration.
- Maintains a 50 Ohm impedance characteristic suitable for standard RF systems.
Applications
- RF signal conditioning
- Radio frequency circuit design
Procurement Notes
Verify the specific datasheet version and ordering suffixes when sourcing this component. Confirm availability status as supply conditions may vary. Ensure compatibility with existing PCB footprint designs requiring 0603 dimensions. Cross-reference manufacturer part numbers to avoid substitution errors during procurement processes.
Selection Notes
Select this component for applications requiring precise bandpass filtering in the 6-8 GHz range. Consider the 0603 package size for space-constrained designs. Verify thermal requirements against the -40°C to +85°C operating range. Ensure system impedance matches the 50 Ohm specification for optimal performance.
Part Context
This component belongs to the BP series of bandpass filters from Pulse Electronics. It is categorized under signal conditioning products within the broader RF filters portfolio. The 1608 metric designation indicates its standardized surface-mount form factor, aligning with common industry packaging standards for compact electronic components.
FAQ
What is the operating temperature range for the BPF1608LKAPR6580A?
The operating temperature range is from -40°C to +85°C.
What is the physical package size of this filter?
The filter is housed in a 0603 (1608 metric) package.
