BPF1608LM02R2400A

Overview

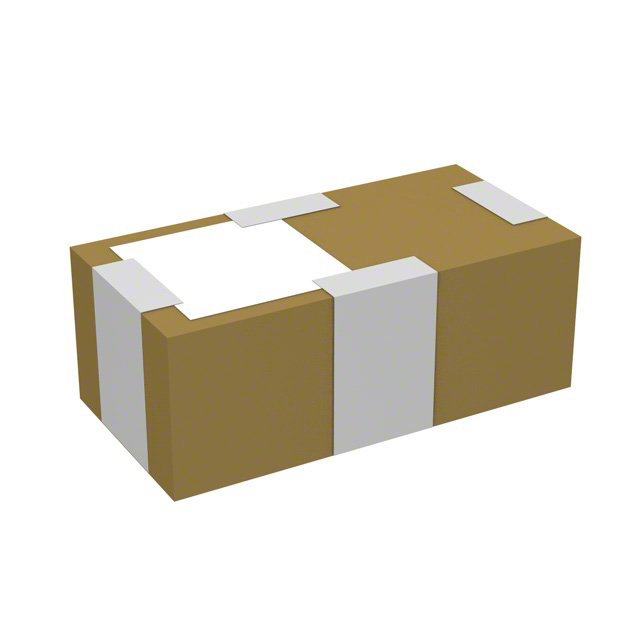

The BPF1608LM02R2400A is a bandpass filter manufactured by Pulse Electronics, designed for signal conditioning applications. It operates at a center frequency of 2.45 GHz with a passband ranging from 2.4 GHz to 2.5 GHz. The component features a 50 Ohm impedance and utilizes SMD/SMT termination types. It is housed in a compact 0603 (1608 metric) package suitable for board mounting. The device supports an operating temperature range from -40°C to +85°C. Insertion loss specifications indicate performance characteristics relevant to Bluetooth and wireless connectivity systems.

Feature Summary

• Provides bandpass filtering for RF signal conditioning
• Supports operation within the 2.4 GHz to 2.5 GHz frequency range
• Designed for surface mount technology integration

Applications

• Bluetooth connectivity modules
• Wireless local area network (WLAN) devices
• RF noise reduction circuits

Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm RoHS compliance status and specific datasheet revisions prior to integration. Ensure supply chain stability as availability may vary. Validate that the 0603 package dimensions align with PCB footprint requirements. Check for any specific handling instructions regarding ESD sensitivity during assembly processes.

Selection Notes

Select this component when a compact bandpass filter is required for 2.4 GHz ISM band applications. The 0603 form factor suits space-constrained designs. Consider insertion loss and impedance matching requirements relative to the system architecture. Evaluate thermal performance against the specified -40°C to +85°C operational range. Compare alternative filters based on size constraints and frequency specificity needs.

Part Context

This part belongs to Pulse Electronics' RF signal conditioning portfolio, specifically within their bandpass filter series. The product line targets wireless communication infrastructure and consumer electronics requiring precise frequency selection. The 1608 metric case size indicates a standard surface-mount footprint widely used in modern electronic assemblies for miniaturization purposes.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing circuit designs before considering alternative components from other manufacturers.
