BPF1608LM07R2400A

Overview

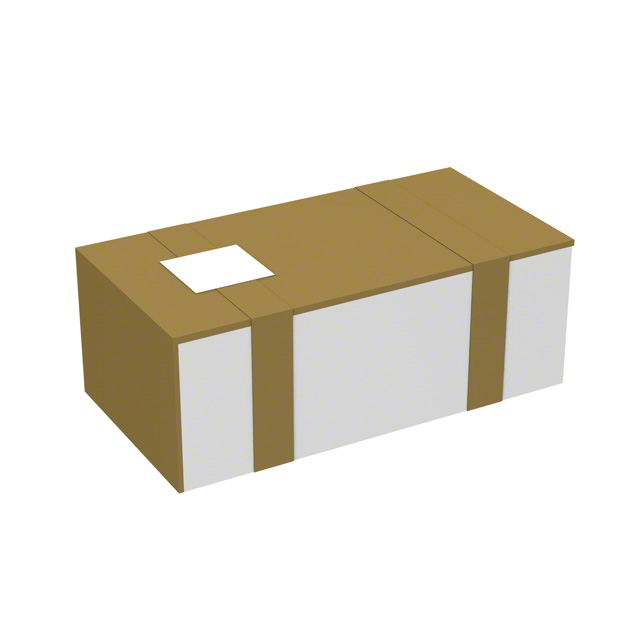

The BPF1608LM07R2400A is a surface-mount bandpass filter manufactured by Pulse Electronics Corporation. Designed for RF signal conditioning, this component operates at a center frequency of 2.45 GHz. It utilizes a compact 0603 (1608 metric) package suitable for board mounting applications. The device functions as an RF filter to manage signal integrity within wireless communication circuits.

Feature Summary

• Provides bandpass filtering characteristics for radio frequency signals
• Optimized for operation at the 2.45 GHz frequency point
• Utilizes a compact 0603 surface-mount package design

Applications

• Wireless local area network (WLAN) systems
• Bluetooth enabled devices
• Zigbee communication modules

Procurement Notes

Verify the specific datasheet version and electrical tolerances against current Pulse Electronics documentation before integration. Confirm that the 0603 footprint matches the target PCB layout requirements. Ensure compatibility with the intended manufacturing assembly processes for surface-mount technology components.

Selection Notes

Select this component when a fixed 2.45 GHz bandpass response is required in space-constrained designs. The 0603 form factor supports high-density circuit board layouts. Evaluate insertion loss and rejection specifications from the official datasheet to ensure compliance with system noise floor requirements.

Part Context

This part belongs to the Pulse Electronics 1608 series of RF filters. The series offers various bandpass configurations tailored for different wireless standards. The 1608 designation indicates the standardized imperial size code corresponding to the physical dimensions of the ceramic substrate.
