BPF2012LKAMR6580A

Overview

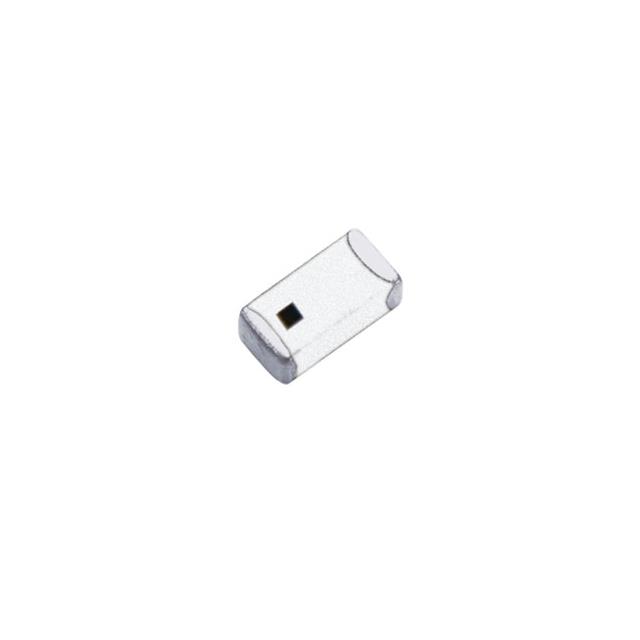

The BPF2012LKAMR6580A is a band pass filter manufactured by Pulse Electronics, designed for ultra-wideband applications. It operates within a frequency range of 6.24 GHz to 8.24 GHz and features a four-pin configuration housed in an 0805 [2012 Metric] surface-mount package. The component supports a wide operating temperature range from -40°C to +125°C, ensuring reliability in demanding environments. With a bandwidth characteristic of 1.55 dB, it provides precise signal filtering for RF systems requiring compact form factors and high thermal stability.

Feature Summary

• Provides band pass filtering functionality specifically tuned for ultra-wideband frequencies between 6.24 GHz and 8.24 GHz.
• Utilizes a compact 0805 [2012 Metric] surface-mount package with a four-pin configuration for efficient PCB integration.
• Engineered to maintain operational integrity across an extended industrial temperature range from -40°C to +125°C.

Applications

• IEEE 802.15.4 wireless communication standards
• Ultra-wideband (UWB) signal processing circuits
• RF front-end modules requiring narrowband filtering

Procurement Notes

Verify the specific ordering suffix and revision level against the official Pulse Electronics datasheet to ensure compatibility with your design requirements. Confirm that the 0805 footprint matches your PCB layout constraints. Check for any RoHS compliance documentation if environmental regulations apply to your manufacturing process. Ensure that the supplier provides traceability certificates for the batch produced by Pulse Electronics.

Selection Notes

Select this component when designing circuits that require precise filtering within the 6.24 GHz to 8.24 GHz spectrum. Its small 0805 footprint makes it suitable for space-constrained mobile or IoT devices. The wide temperature rating allows use in automotive or industrial settings where standard commercial-grade components might fail. Consider its insertion loss characteristics relative to your system's noise budget.

Part Context

This part belongs to Pulse Electronics' RF signal conditioning portfolio, specifically within their band pass filter series. It is engineered to complement other RF components in UWB transceivers. The manufacturer focuses on miniaturized passive components that meet stringent size and performance standards for modern wireless connectivity solutions.

Replacement Considerations

Consult the official Pulse Electronics substitution guide for verified alternatives. Ensure any replacement maintains the same 0805 footprint, 6.24-8.24 GHz passband, and 4-pin configuration. Verify thermal and electrical parameter equivalence before integrating substitute parts into production designs.

FAQ

What is the primary frequency range for this band pass filter?

The BPF2012LKAMR6580A operates effectively within a passband frequency range of 6.24 GHz to 8.24 GHz.

Does this component support high-temperature environments?

Yes, the filter is rated for operation in temperatures ranging from -40°C to +125°C, making it suitable for industrial and automotive applications.
