BPF2012LL03R2400A

Overview

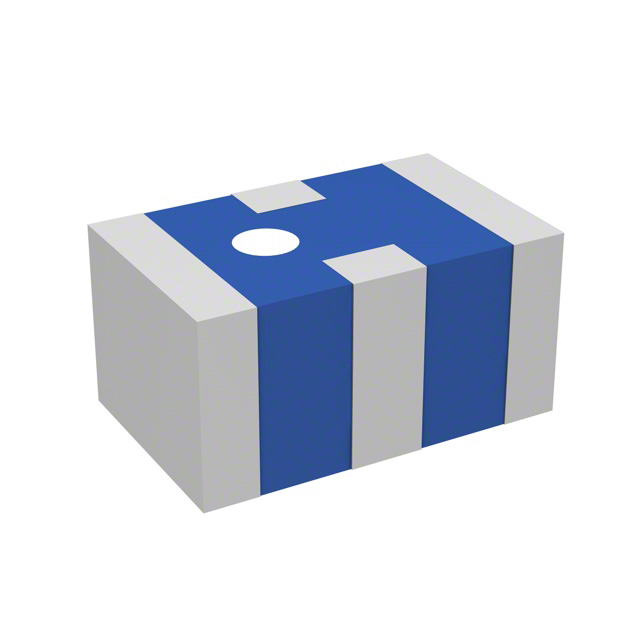

The BPF2012LL03R2400A is a passive bandpass RF filter manufactured by Pulse Electronics. It features a center frequency of 2450 MHz and a bandwidth of 100 MHz, with an insertion loss of 2 dB. The component utilizes surface mount technology in a 0805 (2012 metric) package.

Feature Summary

• Passive bandpass filter design for radio frequency signal conditioning
• Surface mount construction suitable for automated board assembly

Applications

• Wireless communication systems operating at 2.4 GHz
• RF front-end filtering applications
• Signal conditioning circuits requiring specific frequency selection

Procurement Notes

Verify the exact datasheet version and electrical specifications directly from Pulse Electronics official documentation before procurement. Confirm that the 0805 package dimensions and soldering profiles align with your manufacturing capabilities. Ensure the component meets all necessary regulatory standards for your target market.

Selection Notes

Select this component when a fixed 2.45 GHz center frequency with narrow 100 MHz bandwidth is required. The 2 dB insertion loss specification should be evaluated against system link budget requirements. Consider the 0805 footprint constraints during PCB layout planning to ensure adequate clearance and thermal management.

Part Context

This part belongs to Pulse Electronics' portfolio of RF filters designed for wireless connectivity solutions. It serves as a specialized signal conditioning element within the broader category of passive RF components, targeting applications where precise frequency isolation is critical for maintaining signal integrity in crowded spectral environments.

Replacement Considerations

Consult official substitution guides or manufacturer cross-reference lists for verified alternatives. Do not assume functional equivalence based solely on package size or nominal frequency without verifying detailed electrical parameters and mechanical compatibility.
