BPF2012LL05R5000A

Overview

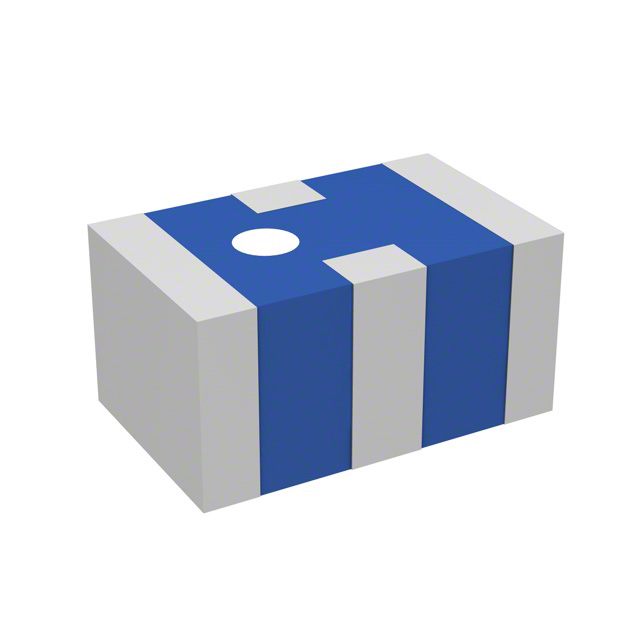

The BPF2012LL05R5000A is a surface-mount bandpass RF filter manufactured by Pulse Electronics. It features a center frequency of 5.5 GHz and operates within the 0805 (2012 metric) package size. The component provides a bandwidth of 1.8 dB, designed for signal conditioning in high-frequency applications.

Feature Summary

• Provides precise bandpass filtering at 5.5 GHz center frequency
• Compact 0805 surface-mount footprint for space-constrained designs
• Optimized for high-frequency signal integrity

Applications

• RF signal conditioning circuits
• Wireless communication modules
• High-frequency data transmission systems

Procurement Notes

Verify current manufacturing status as sources indicate this part may be obsolete or discontinued. Confirm availability with authorized distributors before design finalization. Ensure compatibility with existing supply chains if replacement is required.

Selection Notes

Select this component for applications requiring a 5.5 GHz bandpass response in an 0805 package. Consider the 1.8 dB bandwidth specification for signal filtering requirements. Evaluate alternative components if active production status is mandatory for long-term projects.

Part Context

This component belongs to Pulse Electronics' RF filter portfolio, specifically designed for signal conditioning. It utilizes ceramic or similar dielectric materials typical for high-frequency SMT filters, offering reliable performance in compact electronic assemblies.

Replacement Considerations

Sources indicate the product is no longer manufactured. Identify equivalent 5.5 GHz bandpass filters in 0805 packages from other manufacturers. Verify electrical parameters such as center frequency and bandwidth match original specifications.
