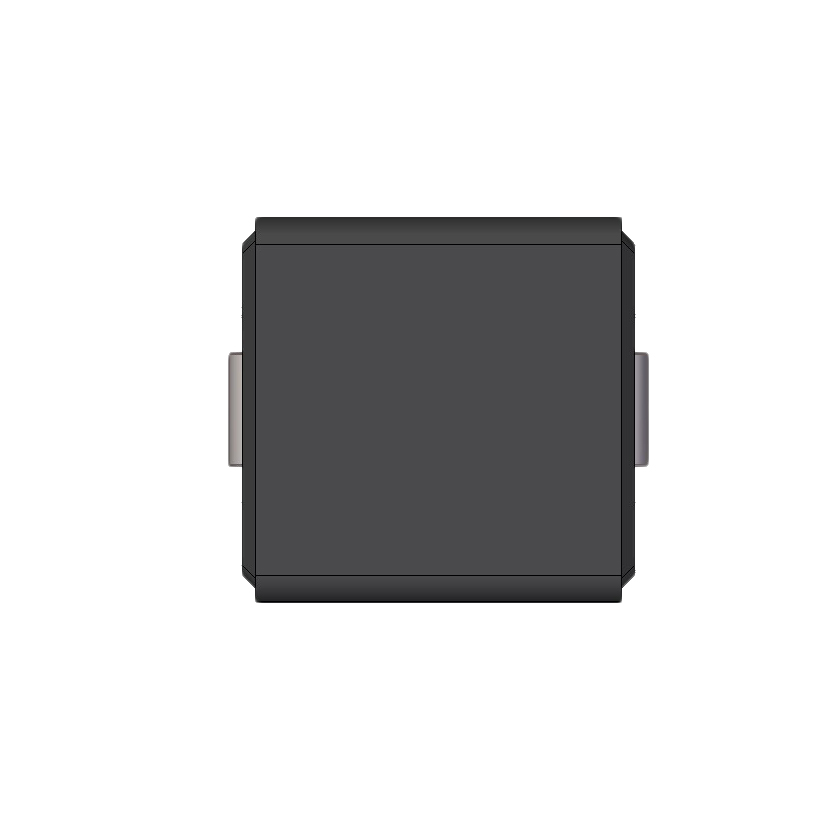

BPH323023W5-400T

Chip Ferrite Bead Overview

The BPH323023W5-400T is a high-current power line ferrite bead manufactured by TAI-TECH Advanced Electronics Co., Ltd. It exhibits an impedance of 40 Ohms at 100 MHz and supports a rated current of 21A with a maximum DC resistance of 0.6mOhm. The component operates within a temperature range of -40°C to +125°C, including self-heating effects. It features a nonstandard package size and offers a tolerance of ±25%. The device is compliant with RoHS standards, ensuring it is lead-free and halogen-free.

Chip Ferrite Bead Feature Summary

• Designed for high-current power line applications with low DC resistance
• Provides effective electromagnetic interference suppression at 100 MHz
• Constructed with lead-free and halogen-free materials for environmental compliance

Chip Ferrite Bead Applications

• Power supply input filtering
• High-current signal line noise suppression
• Electromagnetic compatibility enhancement in electronic circuits

Chip Ferrite Bead Procurement Notes

Verify the specific impedance value of 40 Ohms at 100 MHz against your circuit requirements. Confirm the 21A current rating aligns with your system's operational load. Ensure the nonstandard footprint matches your PCB layout design. Check that the operating temperature range meets your environmental conditions. Validate RoHS compliance documentation if required for your manufacturing process.

Chip Ferrite Bead Selection Notes

Select this component when high current handling capability is critical alongside noise suppression. The low DC resistance minimizes power loss in high-current paths. Consider the nonstandard package dimensions during mechanical integration. Evaluate the 40 Ohm impedance profile for effectiveness at your target frequency. Ensure thermal management accounts for self-heating within the specified temperature limits.

Chip Ferrite Bead Part Context

This ferrite bead belongs to TAI-TECH's advanced electronics lineup, focusing on passive components for power management. It addresses the need for robust EMI filtering in modern electronic devices where space and current capacity are constrained. The product represents a solution for maintaining signal integrity in power delivery networks without introducing significant voltage drops.

Chip Ferrite Bead Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify electrical parameters such as impedance, current rating, and DC resistance when evaluating alternative components from other manufacturers.
