BPSC00131345390T00

Fixed Inductors Overview

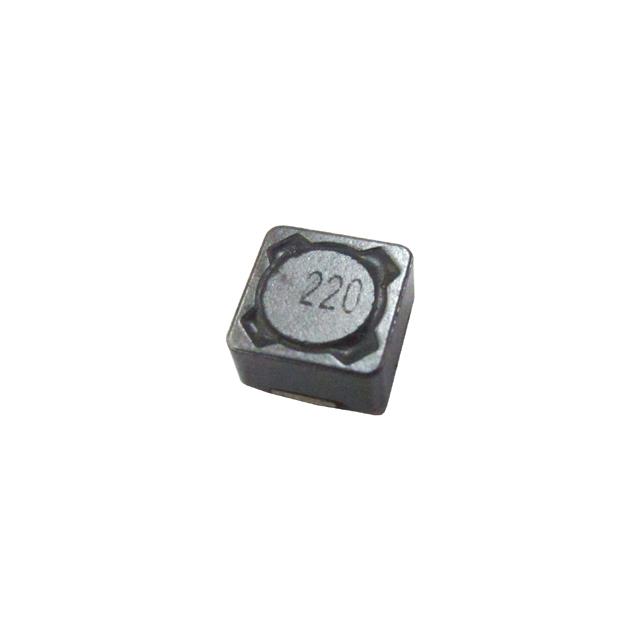

The BPSC00131345390T00 is a surface-mount power inductor from Pulse Electronics, belonging to the BPSC series. It features a shielded wirewound design with a ferrite core, housed in a 12.5 mm x 12.5 mm x 4.5 mm package. The component provides an inductance of 39 µH with a tolerance of ±30%. It supports a saturation current of 3.9 A and has a maximum DC resistance of 39 mΩ. Operating temperatures range from -30°C to +100°C.

Fixed Inductors Feature Summary

• Shielded construction minimizes electromagnetic interference
• Ferrite core material ensures stable magnetic performance
• Wirewound architecture supports high current applications

Fixed Inductors Applications

• DC-DC converter circuits
• Power supply filtering stages
• Energy storage in switching regulators

Fixed Inductors Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm RoHS compliance status and specific packaging quantities prior to ordering. Ensure storage conditions meet moisture sensitivity level requirements to maintain solderability and electrical integrity during assembly processes.

Fixed Inductors Selection Notes

Select this component for designs requiring moderate inductance values within compact footprints. Evaluate thermal management capabilities given the operating temperature limits. Compare saturation current ratings against peak load requirements to prevent performance degradation under heavy load conditions.

Fixed Inductors Part Context

This part belongs to the BPSC series of shielded power inductors manufactured by Pulse Electronics. The series offers various inductance options tailored for different power conversion needs. Components are designed for surface mount technology integration into printed circuit boards.

Fixed Inductors Replacement Considerations

Consult official substitution lists for equivalent parts with matching electrical specifications and physical dimensions.
