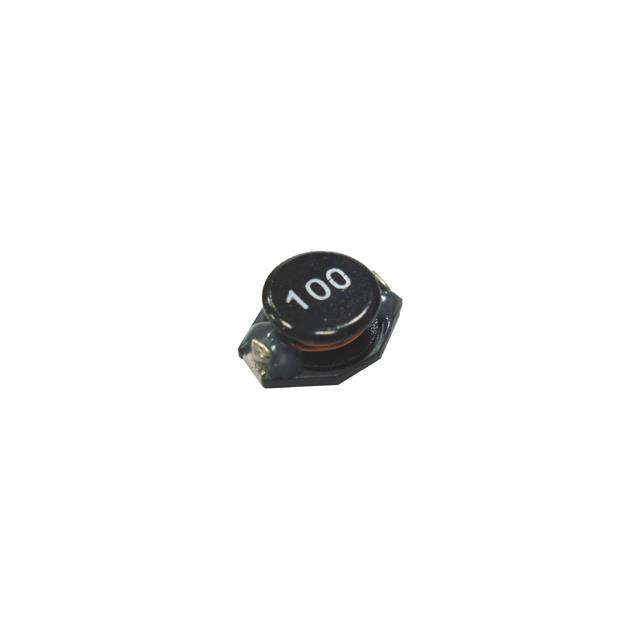

BPSL001915712R2M00

$0.63

Description：INDUCTOR POWER
Series：BPSL
Mfr：Pulse Electronics
Package：Tape & Reel (TR)

SKU:28dd2c59454b Category: Fixed Inductors Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

BPSL001915712R2M00 is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is INDUCTOR POWER. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for BPSL001915712R2M00

Description：INDUCTOR POWER
Series：BPSL
Mfr：Pulse Electronics
Package：Tape & Reel (TR)
Type：Drum Core, Wirewound
Material - Core：Ferrite
Inductance：2.2 µH
Tolerance：±20%
Current Rating (Amps)：7.1 A
Current - Saturation (Isat)：16A
Shielding：Unshielded
DC Resistance (DCR)：14mOhm
Q @ Freq：-
Frequency - Self Resonant：80MHz
Ratings：-
Operating Temperature：-40°C ~ 125°C
Inductance Frequency - Test：100 kHz
Mounting Type：Surface Mount
Package / Case：Nonstandard
Supplier Device Package：-
Size / Dimension：0.730" L x 0.600" W (18.54mm x 15.24mm)
Height - Seated (Max)：0.280" (7.11mm)
Features：-

Fixed Inductors datasheet and documents for BPSL001915712R2M00

BPSL001915712R2M00

Fixed Inductors Overview

The BPSL001915712R2M00 is a surface-mount power inductor from Pulse Electronics, part of the Chilisin Power series. It features a ferrite core and wirewound construction with an unshielded design. The component has an inductance of 12.2 µH, a tolerance of ±20%, and a maximum DC resistance of 0.012 Ohms. It supports a saturation current of 15 A and a maximum DC current of 15 A. Operating within a temperature range of -40°C to +125°C, it measures 19.91 mm in length, 10 mm in height, and utilizes standard SMD terminations for PCB mounting.
