BR-125.000MBE-T

Oscillators Overview

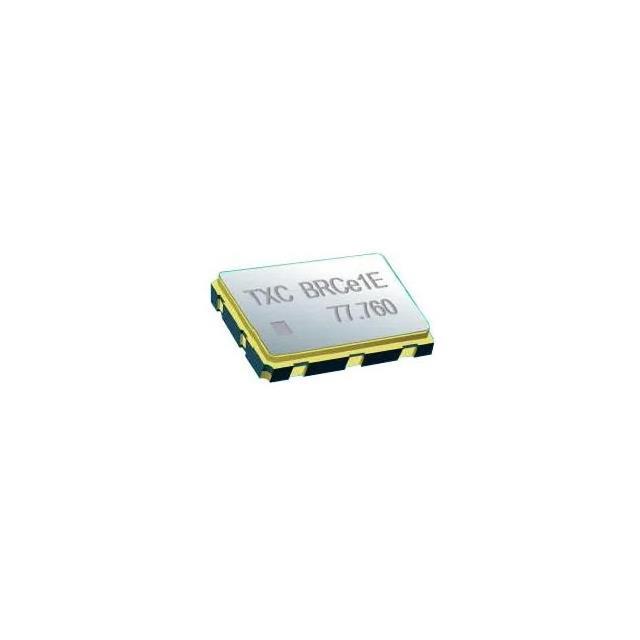

BR-125.000MBE-T is a VCXO oscillator manufactured by TXC Corporation, operating at a frequency of 125 MHz with CMOS output format. It functions on a 3.3V supply voltage and features amplitude control capabilities. The unit exhibits a frequency stability of ±50ppm and an absolute pull range of ±50ppm. Designed for surface mount installation, it utilizes a 6-SMD, No Lead package measuring 7.0mm x 5.0mm. The component supports an industrial operating temperature range from -40°C to +85°C.

Oscillators Feature Summary

• Integrated amplitude control functionality within the VCXO design
• CMOS output signal format for digital interface compatibility
• Industrial-grade operational temperature range support

Oscillators Applications

• Clock generation in high-speed digital systems
• Signal processing equipment requiring precise frequency tuning
• Telecommunications infrastructure components

Oscillators Procurement Notes

Verify the specific part number against manufacturer documentation to confirm current production status and availability. Ensure that the required amplitude control feature aligns with system design specifications. Confirm that the CMOS output voltage levels are compatible with the receiving logic circuits. Validate the operating temperature range requirements against the intended application environment before finalizing procurement decisions.

Oscillators Selection Notes

Select this component when a Voltage Controlled Crystal Oscillator with adjustable amplitude is required. The CMOS output simplifies integration into standard digital logic families without additional level shifting. The ±50ppm stability suits applications demanding moderate precision. Consider the 6-SMD package dimensions for PCB layout constraints. Verify that the 3.3V supply matches the system power architecture.

Oscillators Part Context

The BR series represents TXC Corporation's line of Voltage Controlled Crystal Oscillators. This model specifically targets applications needing tunable frequency outputs with digital CMOS interfaces. The 125 MHz frequency is common in data communication and networking standards. The compact SMD form factor facilitates dense circuit board designs.

Oscillators Replacement Considerations

CB-125.000MBE-T is a documented alternative offering similar electrical characteristics. Verify pinout compatibility and exact parameter alignment before substitution.
