Product Detailed Parameters
- Description：LED GREEN/RED DIFFUSED SMD
- Series：1211C
- Mfr：Stanley Electric Co
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Green, Red
- Configuration：Independent
- Lens Color：White
- Lens Transparency：Diffused
- Millicandela Rating：6.4mcd Green, 11.7mcd Red
- Lens Style：Rectangle with Flat Top
- Lens Size：1.10mm x 1.50mm
- Voltage - Forward (Vf) (Typ)：2.1V Green, 1.7V Red
- Current - Test：20mA Green, 20mA Red
- Viewing Angle：168°, 139° Green, 150°, 140°, Red
- Mounting Type：Surface Mount
- Wavelength - Dominant：567nm Green, 647nm Red
- Wavelength - Peak：560nm Green, 660nm Red
- Features：-
- Package / Case：0606 (1616 Metric)
- Supplier Device Package：-
- Size / Dimension：1.60mm L x 1.50mm W
- Height (Max)：0.80mm
- Grade：-
- Qualification：-
Download product information
Overview

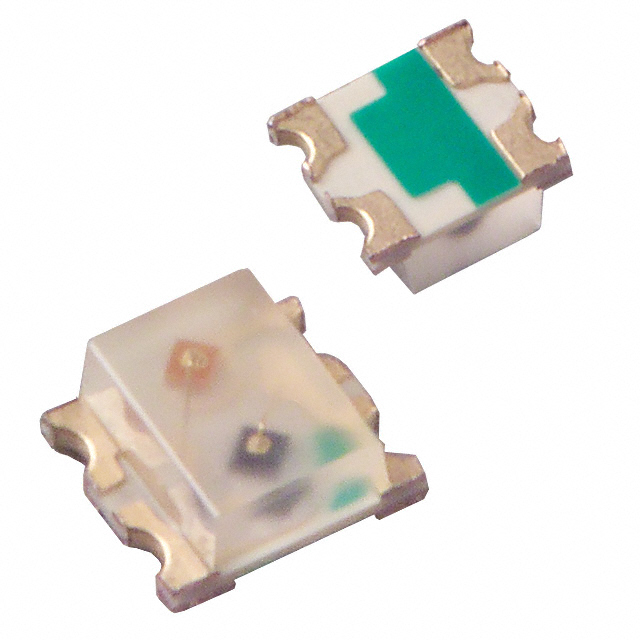

BRPG1211C-TR is a bi-color surface-mount LED manufactured by Stanley Electric Co. It features a rectangular diffused lens in the 0606 (1616 metric) package, measuring 1.6 mm in length, 1.0 mm in width, and 0.7 mm in height. The component emits red light at a wavelength of 647 nm with a forward voltage of 1.7 V and green light at 567 nm with a forward voltage of 2.1 V. Both colors operate at a maximum forward current of 20 mA. The device provides luminous intensities of 11.7 mcd for red and 6.4 mcd for green. It supports an operating temperature range from -30°C to +85°C.
Feature Summary
- Dual-chip bi-color configuration enabling independent red and green emission within a single compact SMD footprint.
- Rectangular colorless lens design with diffused optics to provide wide viewing angles for indicator applications.
Applications
- Status indication on electronic control panels
- Multi-state signaling in industrial equipment
- Visual alerts in consumer electronics
Procurement Notes
Verify component availability status as official sources indicate this part may be discontinued or subject to regional sales restrictions. Confirm RoHS compliance details through the manufacturer datasheet prior to integration. Ensure supply chain partners can provide valid traceability documentation for quality assurance requirements.
Selection Notes
Select this component when a dual-color visual signal is required in a limited board space utilizing the 1616 metric package. Consider the specific luminous intensity requirements for both red and green channels against ambient lighting conditions. Verify that the forward voltage characteristics align with the driving circuit capabilities for reliable operation.
Part Context
This part belongs to Stanley Electric's multi-color LED portfolio designed for surface-mount technology. It utilizes standard SMD/SMT mounting styles compatible with automated assembly processes. The product falls under the category of discrete optoelectronic indicators used for visual feedback in various electronic systems.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer for current lifecycle status and potential obsolescence management options.
