BRPY1211F-TR

Overview

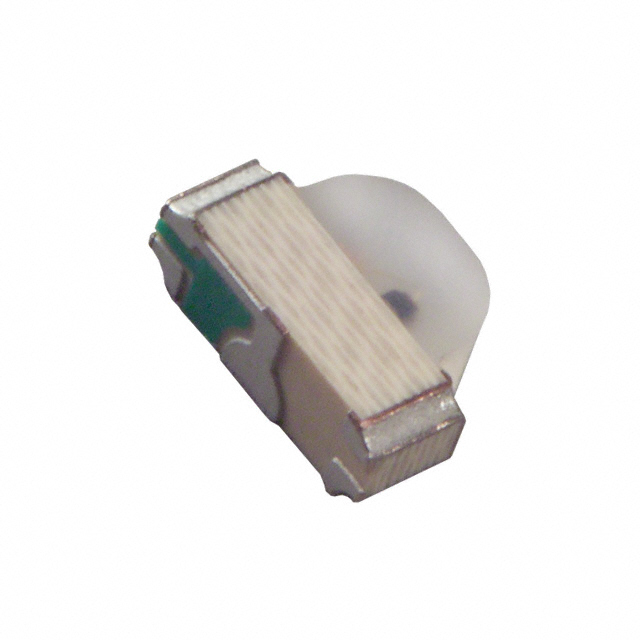

The BRPY1211F-TR is a bi-color surface-mount LED manufactured by Stanley Electric. It features a dual-emitter design housed in an SMD-2 package, providing red and yellow-green light outputs simultaneously. The component operates with a forward current of 20 mA and exhibits distinct forward voltage characteristics for each color channel. Optical performance includes peak wavelengths of 647 nm for the red element and 572 nm for the yellow-green element. The device offers wide viewing angles ranging from approximately 140 to 149 degrees across different axes, ensuring broad visibility. This part is currently listed as obsolete or discontinued.

Feature Summary

• Bi-color configuration integrating red and yellow-green emitters within a single compact surface-mount footprint.
• Wide angular visibility provided by asymmetric viewing angle specifications for enhanced directional indication.
• Standard SMD-2 package construction designed for automated surface-mount assembly processes.

Applications

• Status indication on electronic control panels requiring multi-state signaling
• Indicator lights for consumer appliances and home electronics
• Visual feedback components in automotive interior instrumentation

Procurement Notes

Verify component availability through authorized distributors as this specific part number is marked as obsolete or discontinued. Confirm end-of-life status with the manufacturer before finalizing designs. Check for valid replacement alternatives if current production runs are required. Ensure all ordering documentation reflects the correct suffix and packaging type to avoid fulfillment errors during procurement processing.

Selection Notes

Select this component only when a bi-color red and yellow-green output is strictly required in a low-profile SMD-2 form factor. Evaluate the specific forward voltage requirements for both color channels against the circuit design limits. Consider the wide viewing angles suitable for applications needing broad visual coverage. Assess the obsolescence status carefully to determine long-term supply chain viability for the intended product lifecycle.

Part Context

This component belongs to Stanley Electric's portfolio of surface-mount LEDs, which includes various bi-color and tri-color options. The series typically offers top-viewing and side-viewing configurations for diverse mounting needs. Stanley Electric specializes in high-reliability lighting solutions for industrial and consumer markets. The BRPY1211F-TR represents a specialized variant within their broader discrete LED catalog, focusing on multi-color functionality in small packages.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Due to the obsolete status, direct replacements must be identified through manual datasheet comparison with other bi-color SMD-2 LEDs offering similar wavelength and electrical characteristics.
