BS-212.500MBC-T

Oscillators Overview

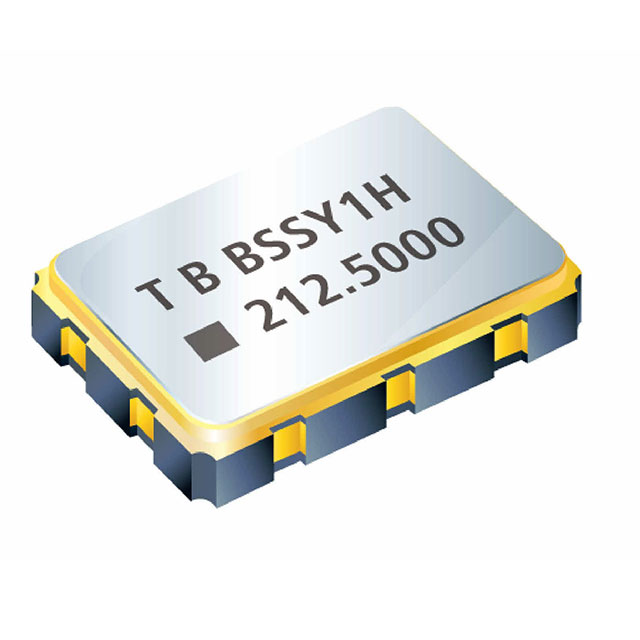

The BS-212.500MBC-T is a standard clock oscillator manufactured by TXC Corporation, operating at a frequency of 212.5 MHz. It utilizes LVPECL output logic and functions with a 3.3V supply voltage. The device features a frequency stability of ±100 ppm across an operating temperature range of -10°C to +70°C. It is housed in a compact 6-SMD, no lead surface-mount package with dimensions of 7.00mm x 5.00mm.

Oscillators Feature Summary

• Generates a precise 212.5 MHz clock signal using LVPECL output interface for high-speed digital applications.
• Operates within a defined industrial temperature range of -10°C to +70°C with ±100 ppm frequency stability.
• Designed for surface-mount assembly in a compact 6-pin SMD footprint to facilitate automated manufacturing.

Oscillators Applications

• High-speed data communication interfaces requiring stable clock sources
• Telecommunications equipment utilizing LVPECL signaling standards
• Digital signal processing systems needing precise timing references

Oscillators Procurement Notes

Verify the specific operating temperature range (-10°C to +70°C) against your system's thermal requirements before procurement. Confirm that the LVPECL output logic is compatible with the receiving circuitry. Ensure the 6-SMD package dimensions fit within the designated PCB area. Check current availability status as stock levels may vary. Validate that the 3.3V supply requirement aligns with your power design.

Oscillators Selection Notes

Select this component when a 212.5 MHz frequency is required with LVPECL outputs. Consider the ±100 ppm stability specification for timing accuracy needs. Evaluate the -10°C to +70°C temperature range suitability for the intended environment. Compare the 6-SMD package size against available board space constraints. Ensure the 3.3V operating voltage matches the system power architecture.

Oscillators Part Context

This part belongs to the standard clock oscillator category from TXC Corporation. It provides a fixed-frequency solution for digital systems. The BS series typically offers surface-mount options for modern electronics. This specific model targets applications requiring LVPECL compatibility at 212.5 MHz.

Oscillators FAQ

What is the output logic type for the BS-212.500MBC-T?

The output logic type is LVPECL (Low Voltage Positive Emitter Coupled Logic).

What is the frequency stability specification?

The frequency stability is specified as ±100 ppm over the operating temperature range.
