BSCQ000603031N7SHR

Fixed Inductors Overview

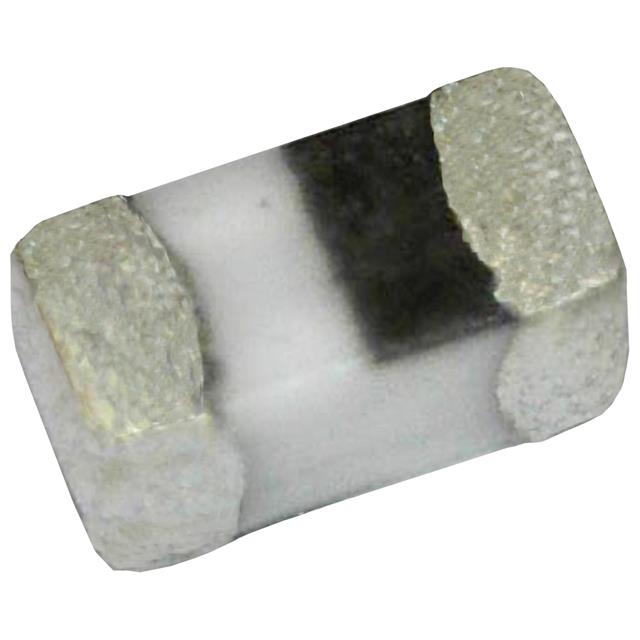

The BSCQ000603031N7SHR is a shielded multilayer RF inductor manufactured by Pulse Electronics, designed for surface-mount applications. It features a ceramic core and standard terminations within a 0.6 mm x 0.3 mm x 0.3 mm package. The component provides an inductance of 1.7 nH with a tolerance of ±0.3 nH. Key electrical specifications include a maximum DC resistance of 200 mOhms, a saturation current of 500 mA, and a minimum Q factor of 14 at a test frequency of 500 MHz. The self-resonant frequency reaches 10 GHz, supporting operation between -55°C and +125°C.

Fixed Inductors Feature Summary

• Shielded multilayer construction utilizing a ceramic core to minimize electromagnetic interference.
• High self-resonant frequency capability suitable for radio frequency signal processing.
• Compact surface-mount footprint optimized for dense PCB layouts.

Fixed Inductors Applications

• RF circuit design
• Signal filtering in wireless communication systems
• Impedance matching networks

Fixed Inductors Procurement Notes

Verify the specific ordering suffix against official manufacturer documentation to ensure correct packaging and tolerance specifications. Confirm RoHS compliance status through the provided datasheet or environmental files before integration. Cross-reference the Mouser part number 673-BSCQ0603031N7SHR with the manufacturer's catalog to validate availability and production lead times. Ensure storage conditions align with the specified temperature range to maintain component integrity.

Fixed Inductors Selection Notes

Select this component when a precise 1.7 nH inductance is required in a minimal 0603-style footprint. The shielded design is appropriate for environments sensitive to crosstalk. Evaluate the 500 mA saturation current limit against peak circuit loads. Consider the 200 mOhm DC resistance impact on power efficiency. The 10 GHz self-resonant frequency ensures stability well beyond typical RF testing frequencies.

Fixed Inductors Part Context

This part belongs to the BSCQ series of RF inductors from Pulse Electronics. It utilizes Chilisin technology for multilayer standard construction. The product falls under the category of SMD RF inductors within the broader Inductors, Chokes & Coils subcategory. It serves as a specialized passive component for high-frequency analog and RF digital circuits requiring compact shielding.

Fixed Inductors Replacement Considerations

The part number alias SDCL0603Q1N7ST02B02 may serve as a functional equivalent. Verify pin compatibility and electrical parameters before substitution. Consult official cross-reference lists for confirmed alternatives.
