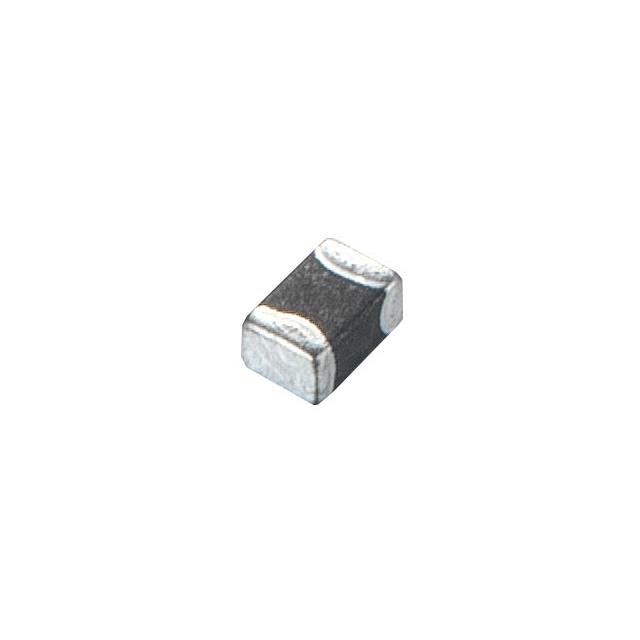

BSCY002012091R0TCP

$0.05

Description：INDUCTOR RF
Series：BSCY
Mfr：Pulse Electronics
Package：Tape & Reel (TR)

SKU:149411bcb3c9 Category: Fixed Inductors Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

BSCY002012091R0TCP is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is INDUCTOR RF. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for BSCY002012091R0TCP

Description：INDUCTOR RF
Series：BSCY
Mfr：Pulse Electronics
Package：Tape & Reel (TR)
Type：Multilayer
Material - Core：Ferrite
Inductance：1 µH
Tolerance：±30%
Current Rating (Amps)：2.2 A
Current - Saturation (Isat)：-
Shielding：Unshielded
DC Resistance (DCR)：60mOhm Max
Q @ Freq：-
Frequency - Self Resonant：-
Ratings：-
Operating Temperature：-40°C ~ 105°C
Inductance Frequency - Test：1 MHz
Mounting Type：Surface Mount
Package / Case：0805 (2012 Metric)
Supplier Device Package：805
Size / Dimension：0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max)：0.043" (1.10mm)
Features：-

Fixed Inductors datasheet and documents for BSCY002012091R0TCP

BSCY002012091R0TCP

Fixed Inductors Overview

The BSCY002012091R0TCP is a fixed multilayer inductor manufactured by Pulse Electronics. It features an inductance of 1 µH with a tolerance of ±30%. The component has a maximum DC resistance of 60 mOhms and supports a maximum DC current of 2.2 A. It utilizes an unshielded design within a 0805 (2012 metric) surface-mount package, measuring 2.0 mm in length, 1.25 mm in width, and 1.0 mm in height.

Fixed Inductors Feature Summary

Multilayer construction for compact SMD integration
Unshielded magnetic circuit design
High current handling capability up to 2.2 A

Fixed Inductors Applications

RF circuits
General signal processing
Power supply filtering

Fixed Inductors Procurement Notes

Verify the specific ordering suffix TCP against official Pulse Electronics documentation to confirm tape and reel packaging specifications. Ensure the selected variant matches the required impedance and current ratings for the target application. Cross-reference the manufacturer part number with authorized distributor catalogs to confirm availability and authenticity before procurement.

Fixed Inductors Selection Notes

Select this component for applications requiring a 1 µH inductance value in a standard 0805 footprint. Consider the unshielded nature of the device when designing layouts to minimize electromagnetic interference coupling. Verify that the 2.2 A current rating meets the peak load requirements of the circuit without causing saturation or excessive thermal rise.

Fixed Inductors Part Context

This component belongs to the Chilisin RF inductor series distributed by Pulse Electronics. It represents a standard multilayer ceramic inductor solution designed for surface-mount technology. The product line focuses on providing reliable passive components for high-frequency and power management applications in consumer electronics and communication devices.
