BSDL10S65E6

Overview

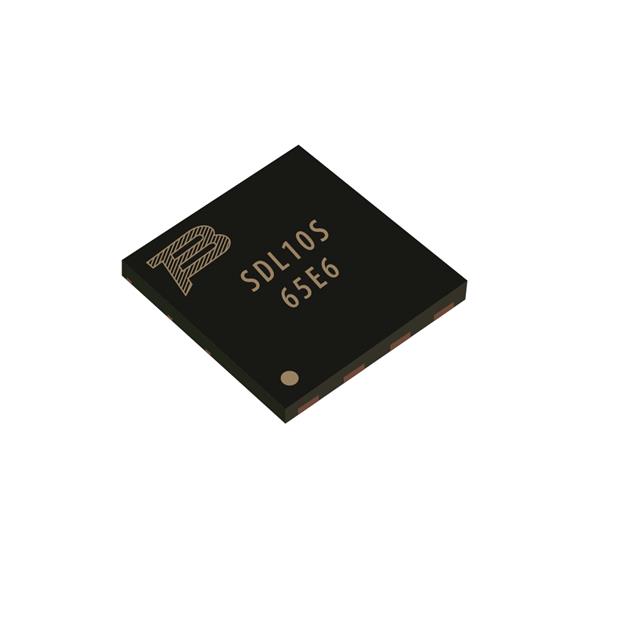

The Bourns BSDL10S65E6 is a Silicon Carbide Schottky diode rated for 650 V repetitive peak reverse voltage and 10 A average forward current. It features a low forward voltage of 1.29 V at 25 °C and operates up to 175 °C junction temperature. Packaged in a DFN8x8 surface-mount format, it offers high surge capability with 75 A non-repetitive peak forward surge current.

Feature Summary

• Low forward voltage drop for high efficiency
• Low reverse leakage current
• High peak forward surge current capability
• Reduced electromagnetic interference

Applications

• Switched-Mode Power Supplies (SMPS)
• Power Factor Correction (PFC)
• PV inverters
• DC-DC converters
• Telecommunications

Procurement Notes

Verify the specific datasheet revision and RoHS compliance status directly with the manufacturer before procurement. Confirm that the DFN8x8 package dimensions match your PCB footprint requirements. Ensure thermal management solutions account for the specified junction-to-case thermal resistance values under your operating conditions.

Selection Notes

Select this component for applications requiring high-frequency switching and reduced power loss. The wide operating temperature range supports demanding thermal environments. Evaluate the low reverse leakage characteristics for high-voltage rectification needs where minimal standby current is critical.

Part Context

This device belongs to the BSD series of Silicon Carbide Schottky Diodes from Bourns. It utilizes advanced SiC technology to provide superior performance compared to traditional silicon counterparts. The single-diode configuration in a compact DFN8x8 package facilitates efficient board space utilization in modern power electronics designs.

Replacement Considerations

Consult official Bourns documentation for verified substitute part numbers within the BSD series or equivalent SiC diode families. Cross-reference electrical parameters such as forward voltage and reverse leakage carefully when considering alternatives.
