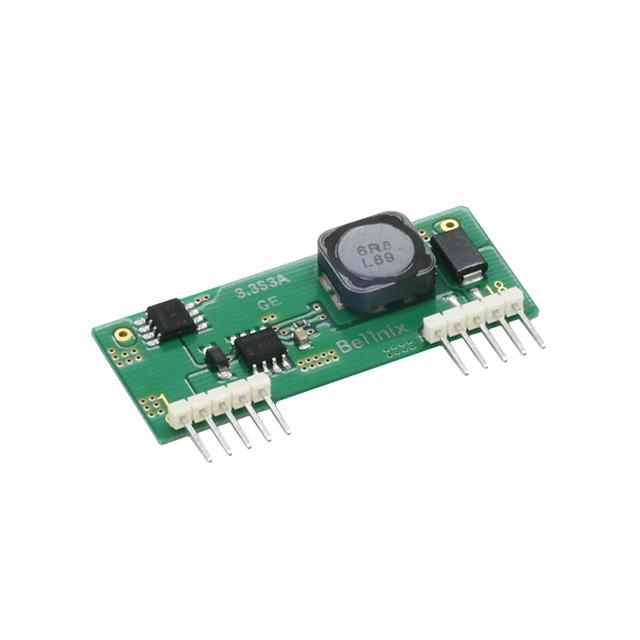

BSI-3.3S3R0A

BSI-3.3S3R0A is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Bellnix Co., Ltd.. Its product description is DC DC CONVERTER 3.3V. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for BSI-3.3S3R0A

• Description：DC DC CONVERTER 3.3V
• Series：BSI
• Mfr：Bellnix Co., Ltd.
• Package：Bulk
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：4.75V
• Voltage - Input (Max)：13.6V
• Voltage - Output 1：3.3V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：3A
• Power (Watts)：-
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：Adjustable Output, Remote On/Off
• Operating Temperature：-10°C ~ 70°C (With Derating)
• Efficiency：91%
• Mounting Type：Through Hole
• Package / Case：18-SIP Module, 10 Leads
• Size / Dimension：2.01" L x 0.35" W x 0.85" H (51.0mm x 8.8mm x 21.5mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for BSI-3.3S3R0A
