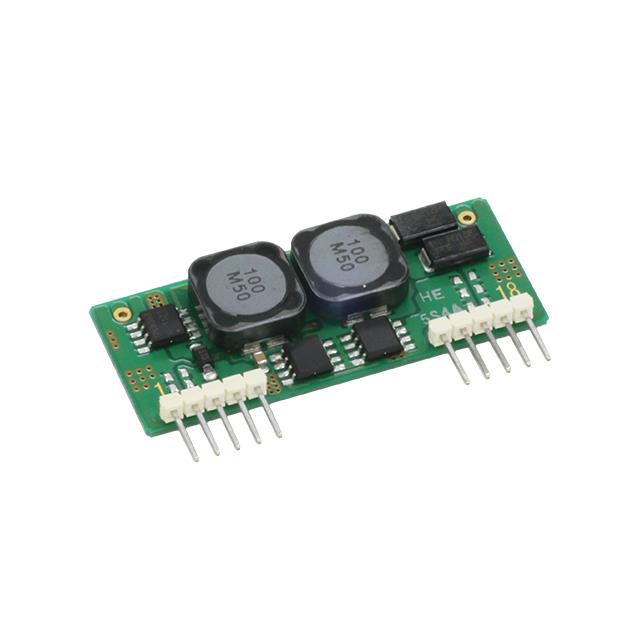

BSI-5.0S4R0PA

BSI-5.0S4R0PA is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Bellnix Co., Ltd.. Its product description is DC DC CONVERTER 5V. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for BSI-5.0S4R0PA

• Description：DC DC CONVERTER 5V
• Series：BSI-P
• Mfr：Bellnix Co., Ltd.
• Package：Bulk
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：6V
• Voltage - Input (Max)：16.5V
• Voltage - Output 1：5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：4A
• Power (Watts)：-
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：Adjustable Output, Remote On/Off
• Operating Temperature：-10°C ~ 70°C (With Derating)
• Efficiency：92%
• Mounting Type：Through Hole
• Package / Case：18-SIP Module, 10 Leads
• Size / Dimension：1.97" L x 0.35" W x 0.81" H (50.0mm x 8.8mm x 20.5mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
