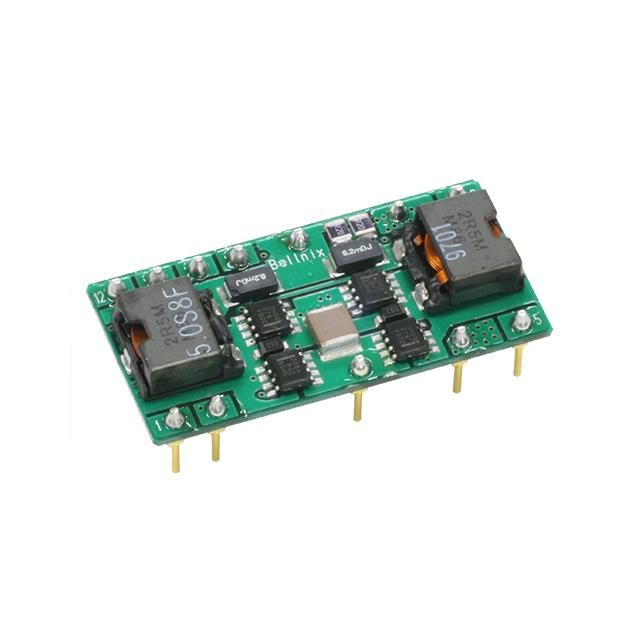

BSI-5.0S8R0F

BSI-5.0S8R0F is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Bellnix Co., Ltd.. Its product description is DC DC CONVERTER 5V 40W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for BSI-5.0S8R0F

• Description：DC DC CONVERTER 5V 40W
• Series：BSI
• Mfr：Bellnix Co., Ltd.
• Package：Bulk
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：8V
• Voltage - Input (Max)：13.6V
• Voltage - Output 1：5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：8A
• Power (Watts)：40 W
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：Adjustable Output, Remote On/Off, Remote Sense
• Operating Temperature：-10°C ~ 70°C (With Derating)
• Efficiency：95%
• Mounting Type：Through Hole
• Package / Case：12-DIP Module
• Size / Dimension：2.01" L x 1.02" W x 0.42" H (51.0mm x 25.9mm x 10.7mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for BSI-5.0S8R0F
