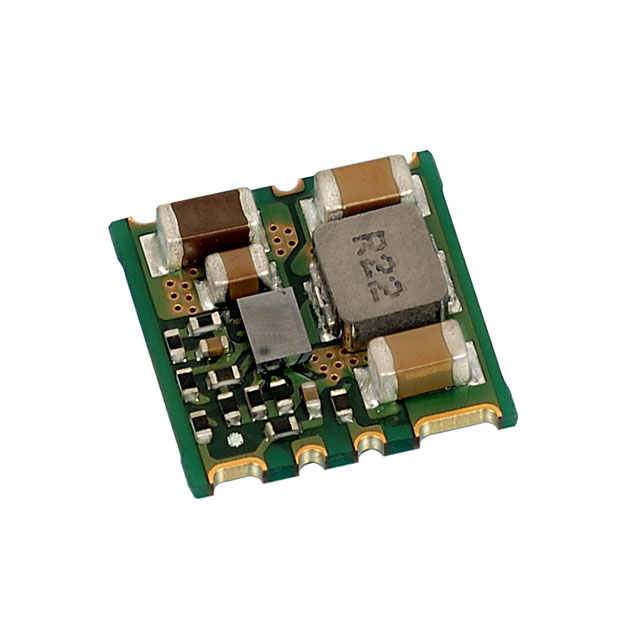

BSV-1.8S4R0NA

BSV-1.8S4R0NA is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Bellnix Co., Ltd.. Its product description is DC DC CONVERTER 1.8V. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for BSV-1.8S4R0NA

• Description：DC DC CONVERTER 1.8V
• Series：BSV-nano
• Mfr：Bellnix Co., Ltd.
• Package：Bulk
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：3V
• Voltage - Input (Max)：5.5V
• Voltage - Output 1：1.8V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：4A
• Power (Watts)：-
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：Adjustable Output, Remote On/Off, Remote Sense
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：87%
• Mounting Type：Surface Mount
• Package / Case：8-SMD Module
• Size / Dimension：0.43" L x 0.43" W x 0.13" H (11.0mm x 11.0mm x 3.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for BSV-1.8S4R0NA
