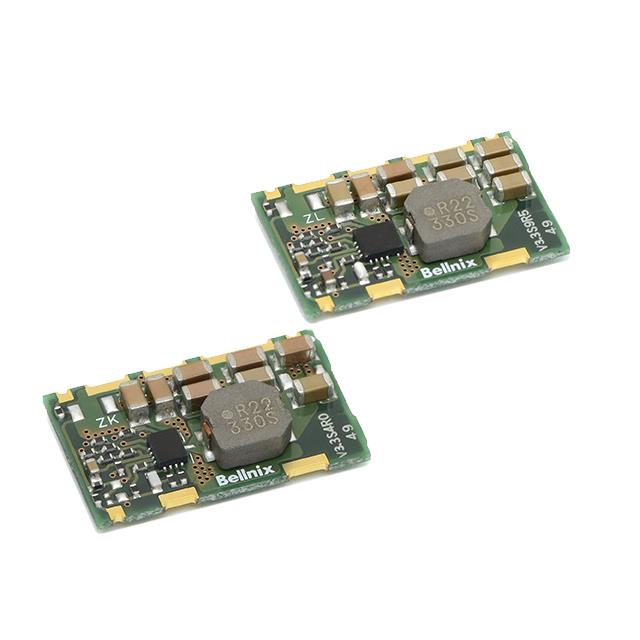

BSV-3.3S4R0M

BSV-3.3S4R0M is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Bellnix Co., Ltd.. Its product description is DC DC CONVERTER 3.3V 13W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for BSV-3.3S4R0M

• Description：DC DC CONVERTER 3.3V 13W
• Series：BSV-M
• Mfr：Bellnix Co., Ltd.
• Package：Bulk
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：3V
• Voltage - Input (Max)：5.5V
• Voltage - Output 1：3.3V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：4A
• Power (Watts)：13 W
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：Adjustable Output, Remote On/Off
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：93%
• Mounting Type：Surface Mount
• Package / Case：8-SMD Module
• Size / Dimension：0.94" L x 0.59" W x 0.16" H (24.0mm x 15.0mm x 4.0mm)
• Supplier Device Package：-
• Control Features：Enable, Active High
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for BSV-3.3S4R0M
