BT-200.000MCC-T

Oscillators Overview

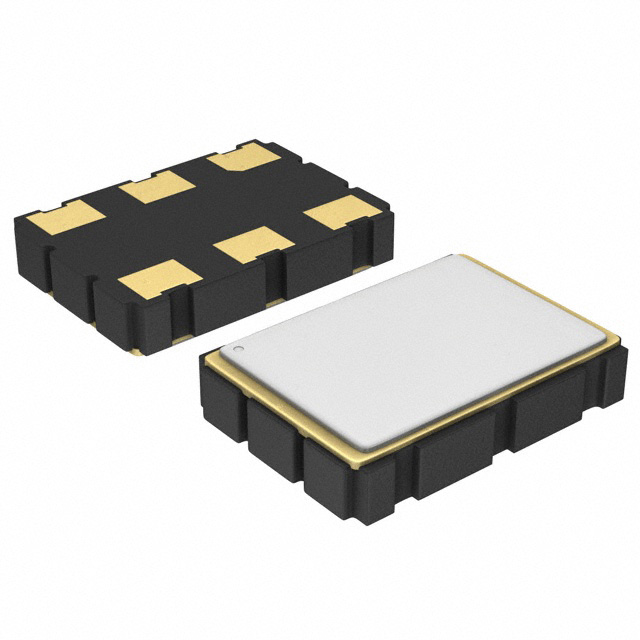

The BT-200.000MCC-T is a standard clock oscillator manufactured by TXC Corporation, operating at a frequency of 200.000 MHz. It utilizes LVDS output format and functions within a supply voltage range of 2.5 V to 3.3 V. The device offers a frequency stability of 100 ppm and supports an operating temperature range from -10°C to +70°C. Housed in a 6-SMD, No Lead package with SMD/SMT termination, it is designed for high-speed digital applications requiring precise timing signals.

Oscillators Feature Summary

• Generates precise 200 MHz timing signals using LVDS output format
• Operates on a single 2.5V to 3.3V power supply
• Provides 100 ppm frequency stability across the specified temperature range

Oscillators Applications

• High-speed digital systems
• Precision timing signal generation
• Data communication interfaces

Oscillators Procurement Notes

Verify the specific ordering suffix and package variant against the official datasheet before procurement. Confirm that the LVDS output configuration matches the target circuit requirements. Ensure the operating temperature range of -10°C to +70°C aligns with the environmental conditions of the intended application. Cross-reference the 6-SMD package dimensions with the PCB footprint design.

Oscillators Selection Notes

Select this component when a 200 MHz clock source with LVDS signaling is required. Consider the 100 ppm stability specification for timing accuracy needs. Evaluate the 2.5V to 3.3V supply compatibility with the system power rails. Assess the thermal performance within the -10°C to +70°C operational window.

Oscillators Part Context

This part belongs to the standard clock oscillator category from TXC Corporation. It is designed as a surface-mount device suitable for automated assembly processes. The LVDS output type indicates its suitability for differential signaling applications, distinguishing it from CMOS or LVPECL variants within the manufacturer's portfolio.

Oscillators Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
