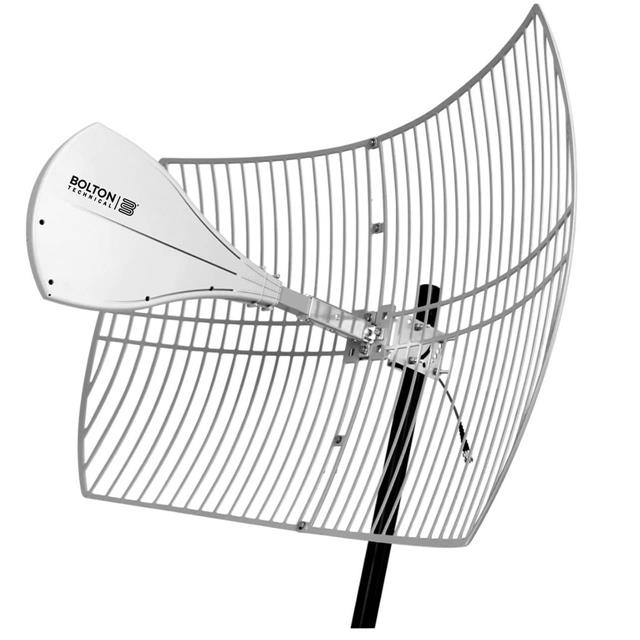

BT974822

BT974822 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Bolton Technical. Its product description is 28dB High Gain Grid Parabolic. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for BT974822

• Description：28dB High Gain Grid Parabolic
• Series：-
• Mfr：Bolton Technical
• Package：Retail Package
• RF Family/Standard：Cellular
• Frequency Group：-
• Frequency (Center/Band)：-
• Frequency Range：600MHz ~ 6.5GHz
• Antenna Type：Parabolic
• Number of Bands：-
• VSWR：2.5, 2, 2.5
• Return Loss：-
• Gain：8dBi ~ 15dBi, 20dBi ~ 28dBi, 10dBi ~ 26dBi
• Features：-
• Termination：N Type Female
• Ingress Protection：-
• Grade：-
• Qualification：-
• Mounting Type：-
• Height (Max)：-
• Applications：Signal Boosting
• Power - Max：-
