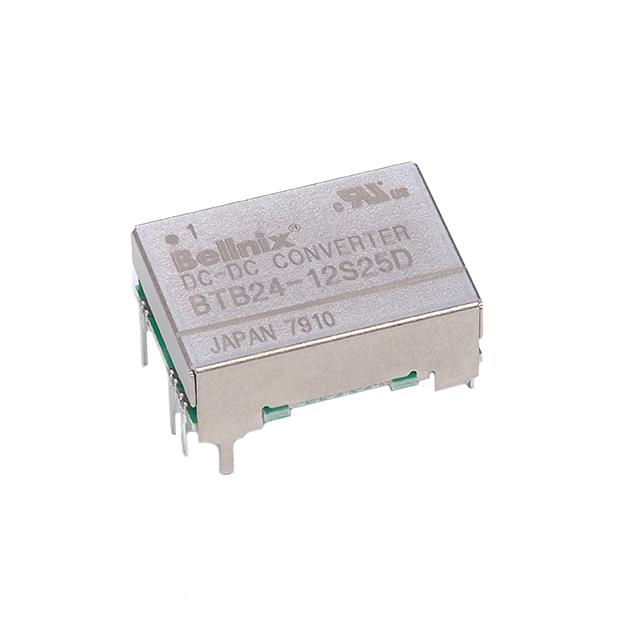

BTB24-12S25D

BTB24-12S25D is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Bellnix Co., Ltd.. Its product description is DC DC CONVERTER 12V 3W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for BTB24-12S25D

• Description：DC DC CONVERTER 12V 3W
• Series：BTB (3W)
• Mfr：Bellnix Co., Ltd.
• Package：Bulk
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：36V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：250mA
• Power (Watts)：3 W
• Voltage - Isolation：500 V
• Applications：ITE (Commercial)
• Features：Adjustable Output, Remote On/Off
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：82%
• Mounting Type：Through Hole
• Package / Case：Module
• Size / Dimension：0.91" L x 0.65" W x 0.33" H (23.2mm x 16.6mm x 8.4mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：cUL, UL
• Standard Number：-

DC DC Converters datasheet and documents for BTB24-12S25D
