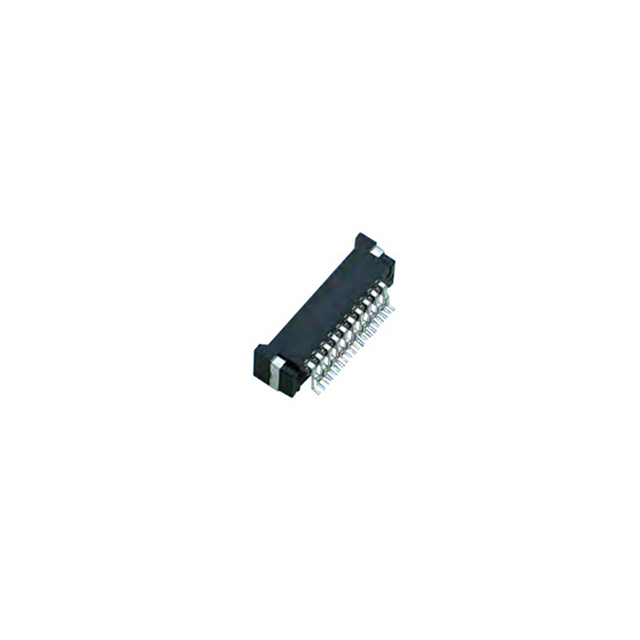

Arrays, Edge Type, Mezzanine (Board To Board) BTFW24R-3RD7LF product image

BTFW24R-3RD7LF

Description：CONN RCPT 24POS R/A TIN
Series：BTFW
Mfr：Amphenol ICC (FCI)
Package：Tray

SKU:bac5573f217c Category: Arrays, Edge Type, Mezzanine (Board to Board) Brand: Amphenol ICC (FCI)

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

BTFW24R-3RD7LF is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN RCPT 24POS R/A TIN. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for BTFW24R-3RD7LF

Description：CONN RCPT 24POS R/A TIN
Series：BTFW
Mfr：Amphenol ICC (FCI)
Package：Tray
Connector Type：Receptacle, Outer Shroud Contacts
Number of Positions：24
Pitch：0.039" (1.00mm)
Number of Rows：2
Mounting Type：Through Hole, Right Angle
Features：Board Lock
Contact Finish：Tin
Contact Finish Thickness：-
Mated Stacking Heights：-
Height Above Board：0.299" (7.60mm)

Arrays, Edge Type, Mezzanine (Board To Board) datasheet and documents for BTFW24R-3RD7LF

BTFW24R-3RD7LF
