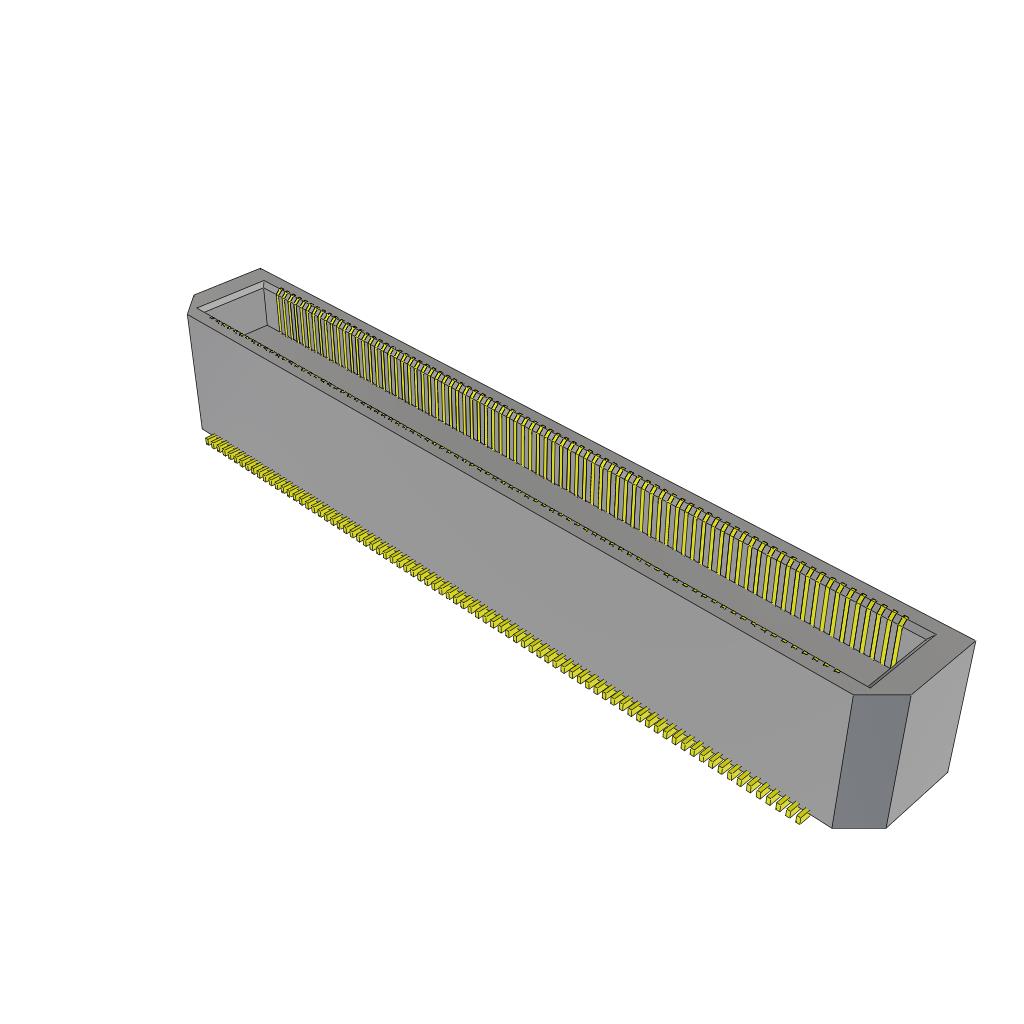

Arrays, Edge Type, Mezzanine (Board To Board) BTH-080-02-F-D product image

BTH-080-02-F-D

$5.26

Description：0.50 MM BASIC BLADE & BEAM TERMI
Series：BTH
Mfr：Samtec Inc.
Package：Tube

SKU:58f5fb3a44a9 Category: Arrays, Edge Type, Mezzanine (Board to Board) Brand: Samtec Inc.

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

BTH-080-02-F-D is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is 0.50 MM BASIC BLADE & BEAM TERMI. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for BTH-080-02-F-D

Description：0.50 MM BASIC BLADE & BEAM TERMI
Series：BTH
Mfr：Samtec Inc.
Package：Tube
Connector Type：Header, Outer Shroud Contacts
Number of Positions：160
Pitch：0.020" (0.50mm)
Number of Rows：2
Mounting Type：Surface Mount
Features：-
Contact Finish：Gold
Contact Finish Thickness：3.00µin (0.076µm)
Mated Stacking Heights：8mm
Height Above Board：0.286" (7.26mm)

Arrays, Edge Type, Mezzanine (Board To Board) datasheet and documents for BTH-080-02-F-D

BTH-080-02-F-D
